世联博研公司现货供应Abq Industrial品牌订货号为的Mark-10 G1023 Bottle / Round Sample Grip,Mark-10 G1023瓶/圆形样品夹产品

Price:

Mark-10 G1023 Bottle / Round Sample Grip

Torque and top-load testing of closures, bottles

100 lbin capacity

This unique grip is designed for securing bottles, containers, and other items for closure torque testing. Eight rubber edged gripping arms effectively grip a wide range of sample shapes and sizes and can be individually positioned at angles of up to 180°. The G1023 mounts directly to the TST, TSTH, TSTM, and TSTMH Torque Measurement Test Stands. The grip may also be mounted to a force measurement stand to secure closures in such applications as top load testing

line
Photo Gallery
line

line

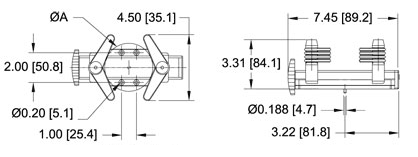

Dimensions
line

dimensions

line
Specifications
line

Capacity	100 in-lbs (11.3 N-M)
Max Sample Diameter	4.8" (122 mm)
Weight	1.5 lbs
