美国 Shelfscientific,ArrowLabb（TM）,ArrowLabb（TM）的微型氢化还原测量系统,ORP-146CXS,ORP-146CXSNMR
ORP-146CXS
请致电：010-67529703
美国 shelfscientific
Advanced Micro Oxidation-Reduction Measurement System
ArrowLabb（TM）的微型氢化还原测量系统
系统可以应用：
细胞色素电位；96孔培养板；微型测试管；血清杯；微管；核磁管；微型离心机管；细胞色素类；
ArrowLabb（TM）的微型氢化还原测量系统是非常完美的，原因如下：
1、能够测出1/10样本的氧化还原电位，你能用这个电ji测量zui低5微升样本。
2、传感器的型号非常小，ArrowDOXTM 电ji的轮缘直径只有1mm。
3、低浸入深度。ArrowDOXTM微型联结氧化还原电ji的侵入深度是0.5mm。
4、保证牢不可破。电ji坚固的传感器和氟聚合物细管有几乎牢不可破的特征。保证电ji探头寿命不受损坏。
5、比玻璃电ji更稳定。探针的稳固设计给测量提供一个非常低的出端电阻。对比同等型号的玻璃探针，它的氧化还原读数更加稳定。
6、测试系统色素的中点电位。在做细胞色素还原电位滴定实验时，氧化物还原测试和分光光度吸收测试可以同时进行。
7、氧化还原电位数据可持续在你的电脑上显示。它能在电脑上随时监控氧化还原电位的变化。在键控输入样本ID时，你会看到电位变化的实时曲线图。它是细胞色素中点电位测试的里想装置。
8、氧化还原电位值可以图表的形式在电脑上显示。在96孔板滴入微量氧化还原电ji，当键控输入样本ID时，氧化还原电位值会记录在你的电脑上。然后继续滴入下一个孔，重复步骤。它可以完整的记录成千上万的氧化还原点位值。
应用范围：生物技术；生物科学、医学、生理学；医药品；放射性样品；等电聚焦凝胶；LC & HPLC；核磁共振样本；环境研究。
现货：核磁共振管ArrowLabb（TM）系统
ArrowLabb（TM）版本系统有一个额外装置能够测试数据并且将核磁共振管内氧化还原数据以图表形式表现出来。

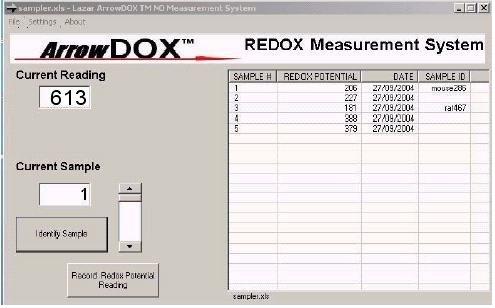

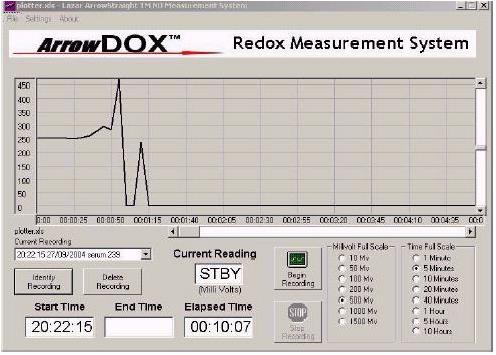

ArrowLabb（TM）软件WindowsTM系统样本截图：
订购须知：
ArrowLabb（TM）微型氧化物还原测量系统包括ORP-146S型号结合氧化还原电ji内置参考、带有RS-232电脑或笔记本接口的6230型号pH/毫伏电ji、电脑连接线、完整的WindowsTM系统兼有记录、列表、制图功能，将氧化还原值显示在电脑上。
货号:
ORP-146CXS—ArrowLabb（TM）测试系统
ORP-146CXSNMR—核磁共振管ArrowLabb（TM）测试系统
Ideal system for:
- cytochrome potential
- 96 well plates
- micro test tubes
- serum cups
- capillary tubes
- NMR tubes
- microcentrifuge tubes
- studies of cytochromes
The ArrowDOXTM Oxidation-Reduction Potential System is the ideal system for these applications for the following reasons:
- GUARANTEED UNBREAKABLE. Solid state fluoropolymer body makes micro redox electrode virtually unbreakable.
- MEASURE OXIDATION-REDUCTION POTENTIAL IN 1/10 OF A DROP. This electrode enables you to measure samples as small as 5 micro liters (1/10 of a drop)
- EXTREMELY SMALL SENSOR SIZE. Tip diameter of the ArrowDOXTM electrode is only 1mm.
- LOW IMMERSION DEPTH. Immersion depth for the ArrowDOXTM micro combination redox electrode is 0.5 mm.
- GUARANTEED UNBREAKABLE. Electrode features solid state sensor and fluoropolymer capillary tube making it virtually unbreakable. Electrode is guaranteed against breakage for the life of the probe. Why settle for glass?
- MORE STABLE THAN GLASS ELECTRODES. The solid state design of the probe offers a much lower output resistance than glass probes of the same size giving a much more stable redox reading.
- MEASURE MIDPONT POTENTIAL OF CYTOCHROMES by simultaneously measuring the oxidation-reduction potential while at the same time measuring the spectrophotometric absorption during a reductive potentiometric titration of cytochrome
- PLOT REDOX POTENTIAL CONTINUOUSLY ON YOUR PC. Monitor the change in oxidation-reduction potential with time directly on your PC and see a real time curve as the potential changes. Ideal for measuring the midpoint potential of cytochromes.
- TABULATE OXIDATION-REDUCTION POTENTIAL VALUES ON YOUR PC. Dip the micro redox electrode into a 96 well plate and record oxidation-reduction potential value on your PC while at the same time keying in the sample ID. Go to next well and repeat procedure. Get complete redox potential record of as many as thousands of individual samples.
APPLICATION AREAS
- Biotechnology
- Biological sciences, medicine & physiology
- Pharmaceuticals
- Radioactive samples
- Isoelectric focusing gels
- LC & HPLC
- NMR samples
- Environmental studies
Now available: ArrowDox(TM) System for NMR tubes
Special version of ArrowDox(TM) is also available with an extra long stem especially for measuring and plotting redox in NMR tubes. Enjoy the same accuracy and features as our regular ArrowDox(TM) System especially designed for NMR tubes.
ORDERING INFORMATIONArrowDoxTM Micro oxidation-reduction Measurement System including Model ORP-146S micro combination redox electrode with built in reference, Model 6230 pH/millivolt electrometer with RS-232 port to PC or laptop, PC cable, complete WindowsTM compatible software program for recording, tabulating, and graphing redox potentials on your PC or laptop.
