PermeGear自动透皮扩散系统，PermeGear’s Automated Systems
型号:PermeGear’s Automated Systems
价格:请致电：010-67529703
品牌:permegear
PermeGear在线单元及在线自动透皮扩散系统
PermeGear 在线自动扩散系统合并了12个单元为一个在线的自动单元，一个供应调速蠕动泵，一个连续收集器，一个恒温水浴循环加热单元，一个自动控制器组成了一个功能强大的渗透现象分析系统，可以分析大批量的样品以节省时间。我们的自动控制器允许用户收集16个样品并能在连续99.9小时内同时做在线自动分析。每一个样品的时间可以通过收集器进行立的程序设定。可根据用户的选择确定收集瓶的数量。我们提供20ml 28mm直径的收集瓶,允许用户选择使用其它常用的4ml WISP管。
PermeGear’s Automated Systems incorporate In-Line Cells, a peristaltic pump, a fraction collector, and a heater/circulator into a versatile system for analyzing flux over time. Collection vials are at the option of the user, racks for 20ml 28mm diameter scintillation vials are provided. Adapters are available to allow the use of many different vials including the popular 4ml WISP vials. Because of the varied requirements of individual users, vials ARE NOT supplied by PermeGear.

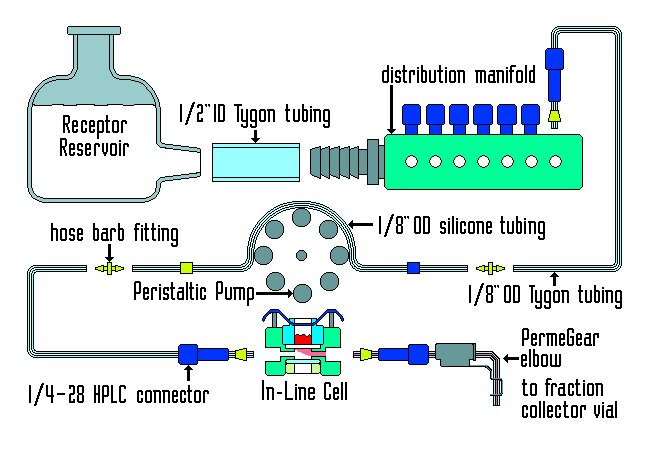

All PermeGear automated diffusion cell systems are based on the continuous flow principle. A multi-channel peristaltic pump draws receptor solution from a reservoir through a distribution manifold and sends it to the In-Line Cells. The cells are warmed to 35?-37?C by a heater/circulator that pumps water through the Cell Warmer in which the In-Line Cells are located. After filling the receptor chambers of the cells and purging the system of bubbles, the subject compound is then placed in the donor chambers of the cells. From that time, the fluid is collected in the vials of the fraction collector at user set time intervals. The vials are taken for analysis manually after the sampling time has elapsed.
Overall pricing for the ILC07 System is dependent on the configuration of the In-Line Cells used.
