voxel8 三维电子材料打印机及电子打印耗材
型号:PLA Reel - Dark Grey
联系人:李胜亮
联系电话:18618101725
品牌:美国voxel-8
voxel8 三维电子材料打印机及电子打印耗材

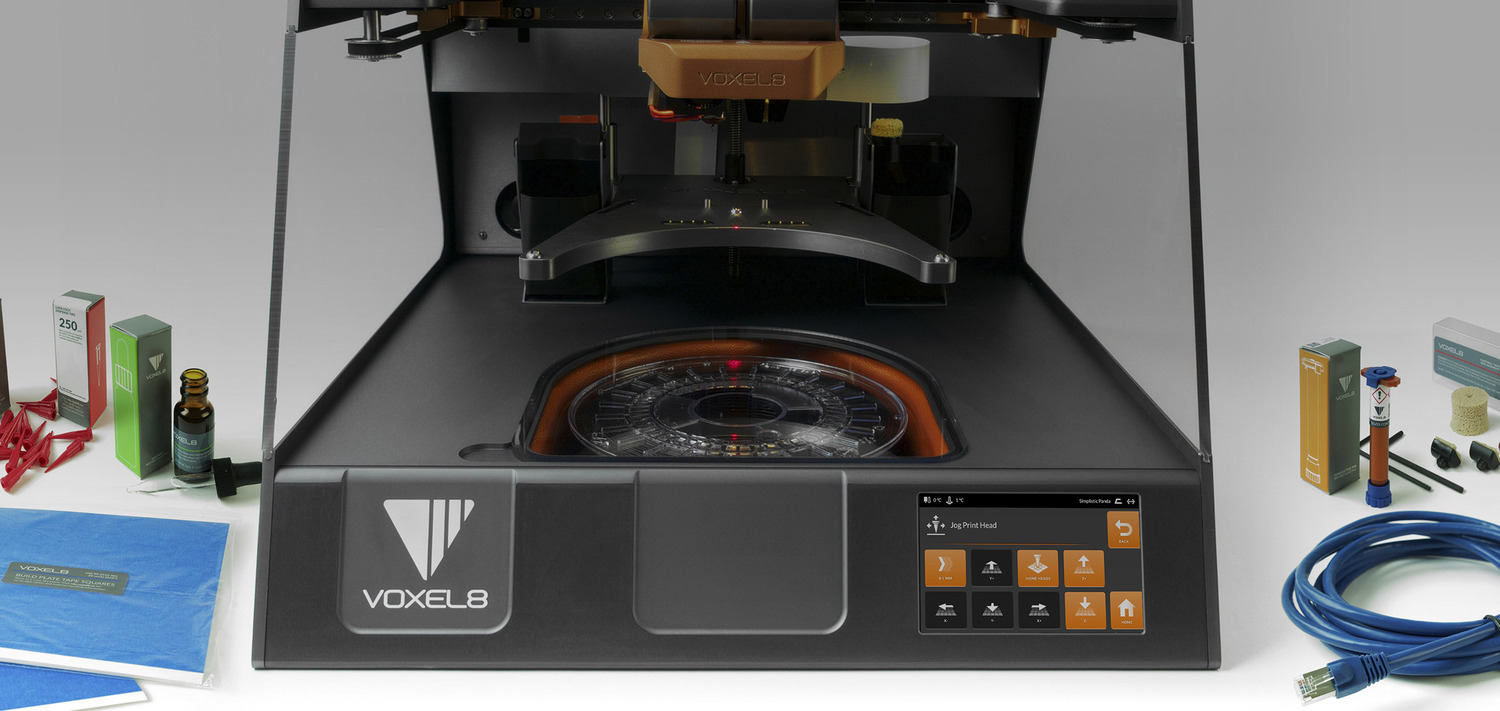

Voxel8多材料3D电子打印机
专利的基础上开发的，具有两个不同的打印头，一个是基于常见FFF/FDM技术的使用熔融线材的打印头，另外一个则是使用导电银墨水的打印头
Voxel8的te制油墨会通过一个250微米直径的专用喷嘴进行沉积。一旦打印，会在室温下很快干燥，不需要后处理。这些性质使得它能够在传统的热塑性材料上打印。3D电子打印需要具备在打印过程插入多个元器件的能力。而Voxel8桌面3D打印机配置了一个具有高度可重复性的磁性打印床，能够让您在打印过程中把打印对象暂时取下来，插入元器件，如LED或传感器等，然后再放回去继续打印过程。
Voxel8多材料3D电子打印机的技术规格：
●打印技术：FFF、气动直写（Pneumatic Direct Write）

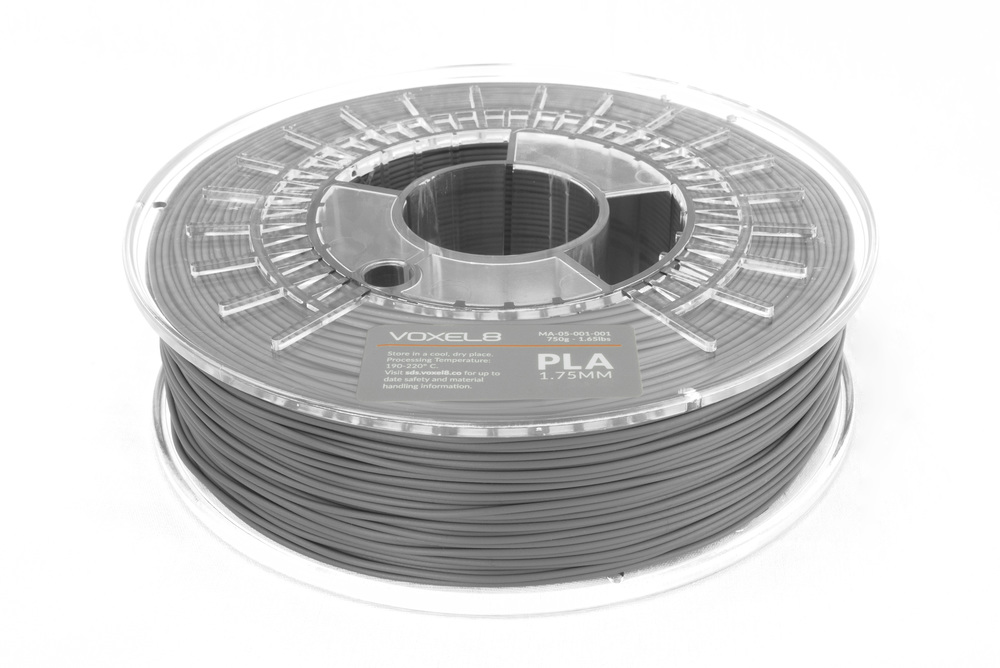

PLA Reel - Dark Grey (0.75kg)
Voxel8’s PLA has a filament diameter of 1.75 mm, is colored Dark Grey, and comes with a clear reel to quickly check remaining filament. Our PLA is subject to rigorous quality control to ensure a consistent filament diameter and optimum performance with our closed loop laser alignment system.

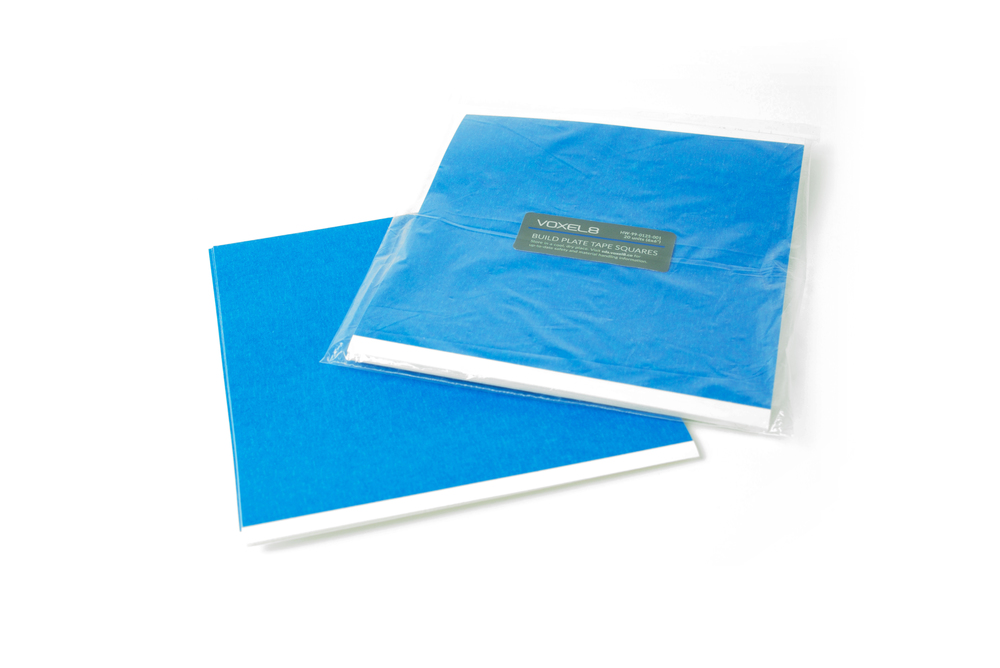

Build Plate Tape Squares
Build Plate Tape Squares are a convenient way to increase PLA adhesion to the build plate and prevent wear. Each square is cut to fit to the Developer’s Kit build plate size of 150 x 150 mm.
Capping Solvent (14 cc)
Capping Solvent is used to prevent the room temperature curing silver ink from drying in the dispense tips, causing clogging. A small amount of solvent is applied to the silver capping mechanism on a regular basis.

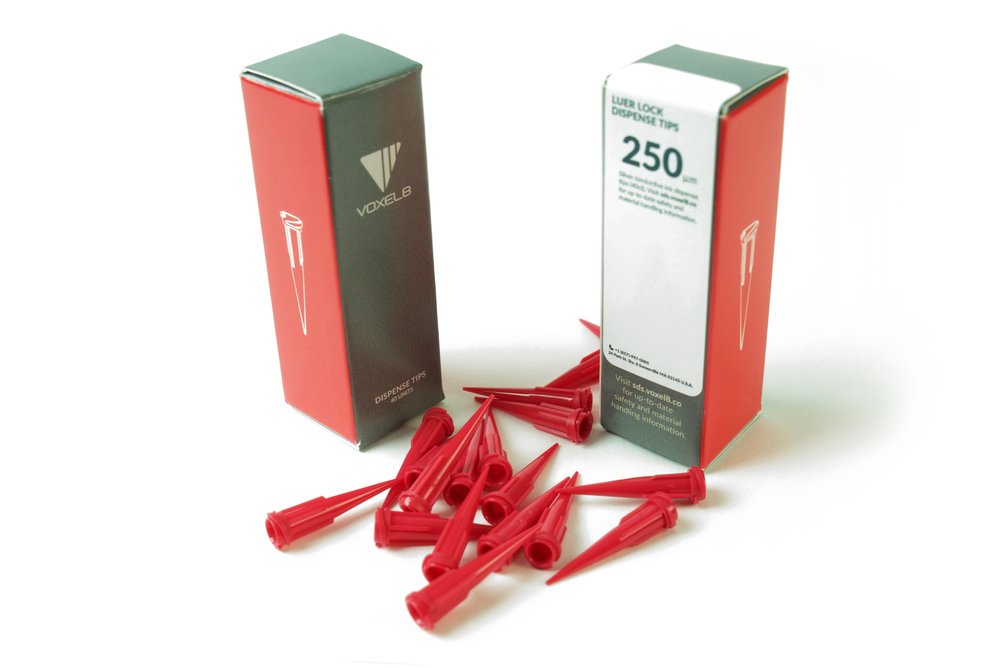

voxel8 Dispense Tips (40 pieces)，电子材料打印针尖，电子材料打印针头
Dispense Tips with a 250 micron aperture. Tips are replaced by screwing them into the bottom of the silver ink syringes. Regular use of Capping Solvent and replacement of Dispense Tips is recommended for high quality silver prints.

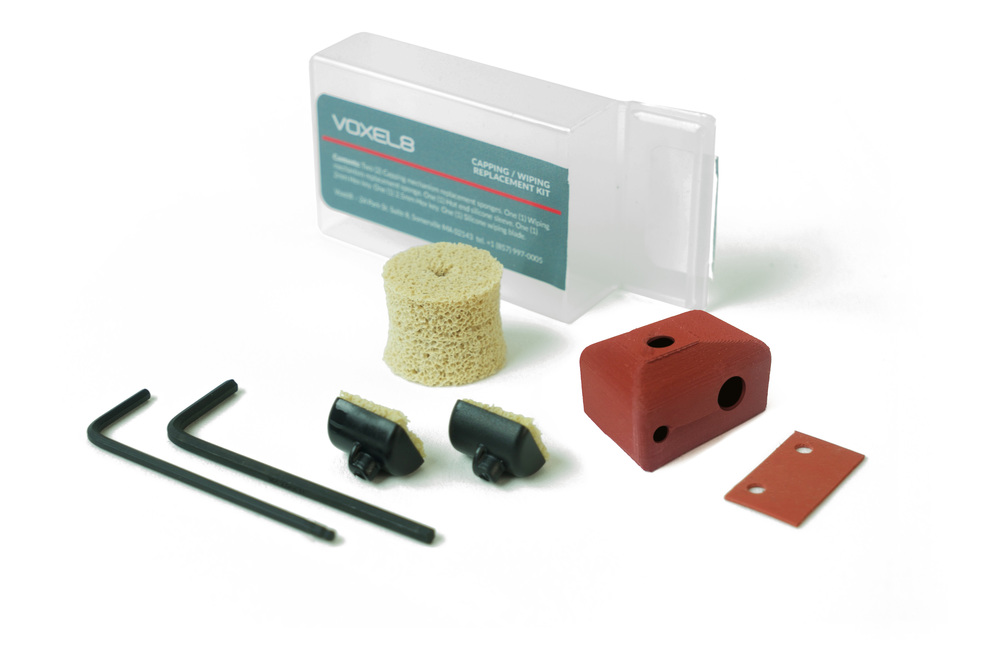

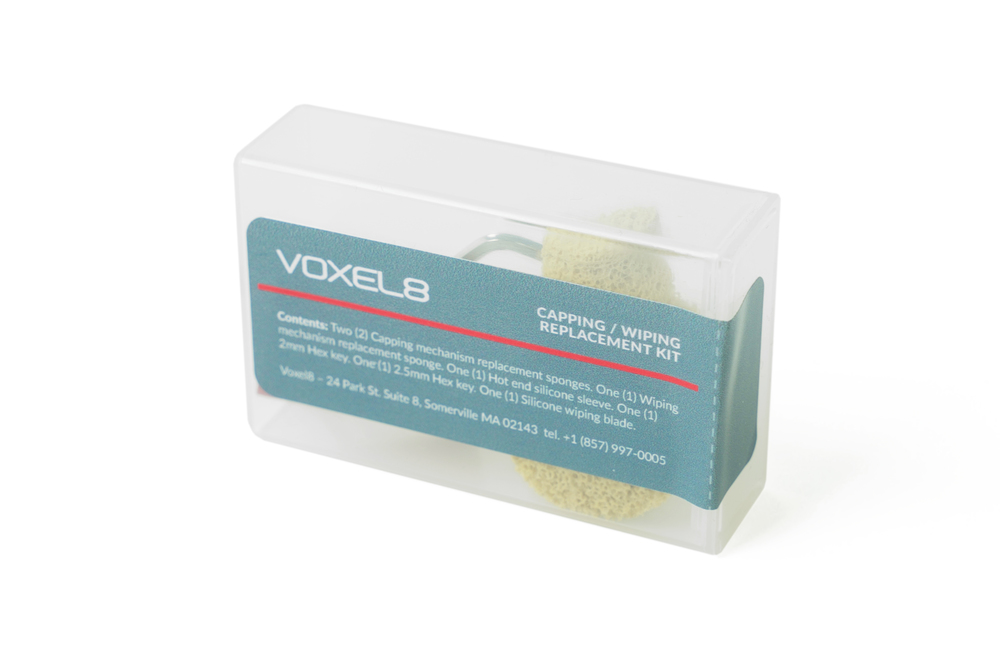

Silver Ink Capping Wiping Kit
The Capping / Wiping Kit contains the following consumable parts for the Developer’s Kit 3D Printer:
- 1x Replacement FFF Silicone Sleeve
- 1x Replacement FFF Silicone Wiping Blade
- 1x Silver Ink Wiping Sponge
- 2x Silver Ink Capping Sponges (1 set)
- 1x 2mm Hex Key
- 1x 2.5mm Hex Key

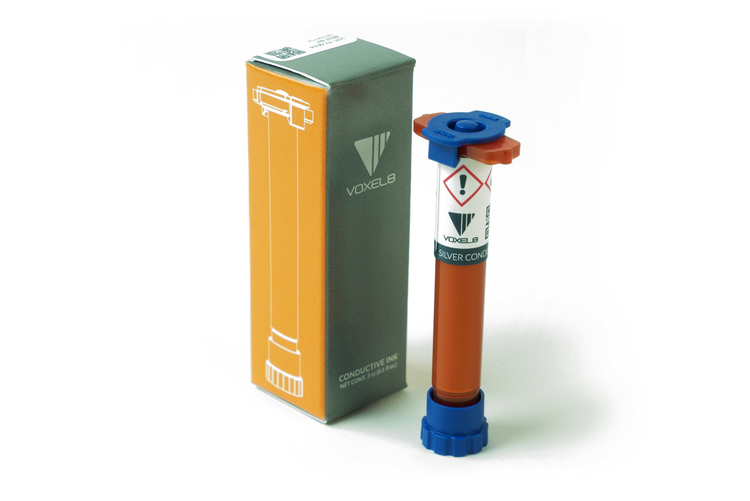

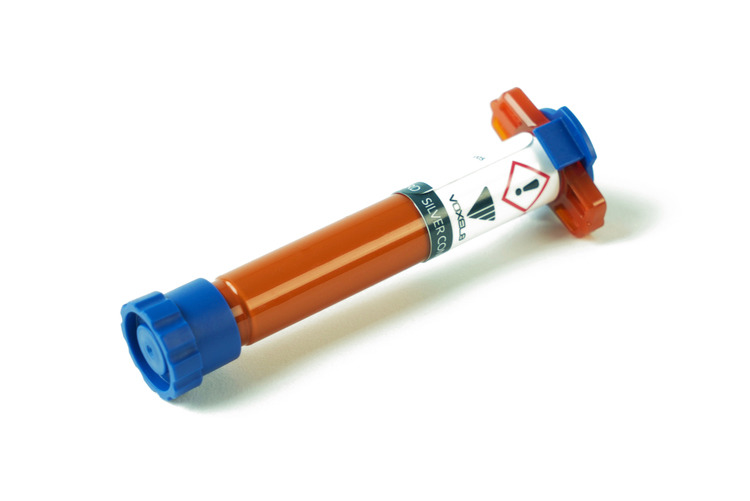

voxel8 Standard Silver Ink ,导电银墨水(Conductive silver ink)
voxel8 Standard Silver Ink ,3D电子材料打印墨水，3D打印电子材料墨水，导电银墨水(Conductive silver ink)
导电银墨水（Conductive silver ink）一般属于水基或醇基墨水，其组分是纳米银微粒、溶剂（水或醇类）、表面活性剂、分散稳定剂和其他助剂
一种高导电性的银色油墨，用于印刷3D电子。每个墨盒包含3cc的银墨水，可以打印大约60米的导电痕迹。
标准银墨在室温下快速干燥，产生高导电性的电极痕迹，wu需额外的固化步骤。可以订购额外的配制针头，以确保打印可靠的银色特征
A highly conductive silver ink formulated for printing 3D electronics. Each cartridge contains 3cc of silver ink that can print approximately 60 meters of conductive trace.
Standard silver ink dries quickly at room temperature yielding highly conductive electrode traces without additional curing steps. Additional dispense tips can be ordered to ensure printing of reliable silver feature。
