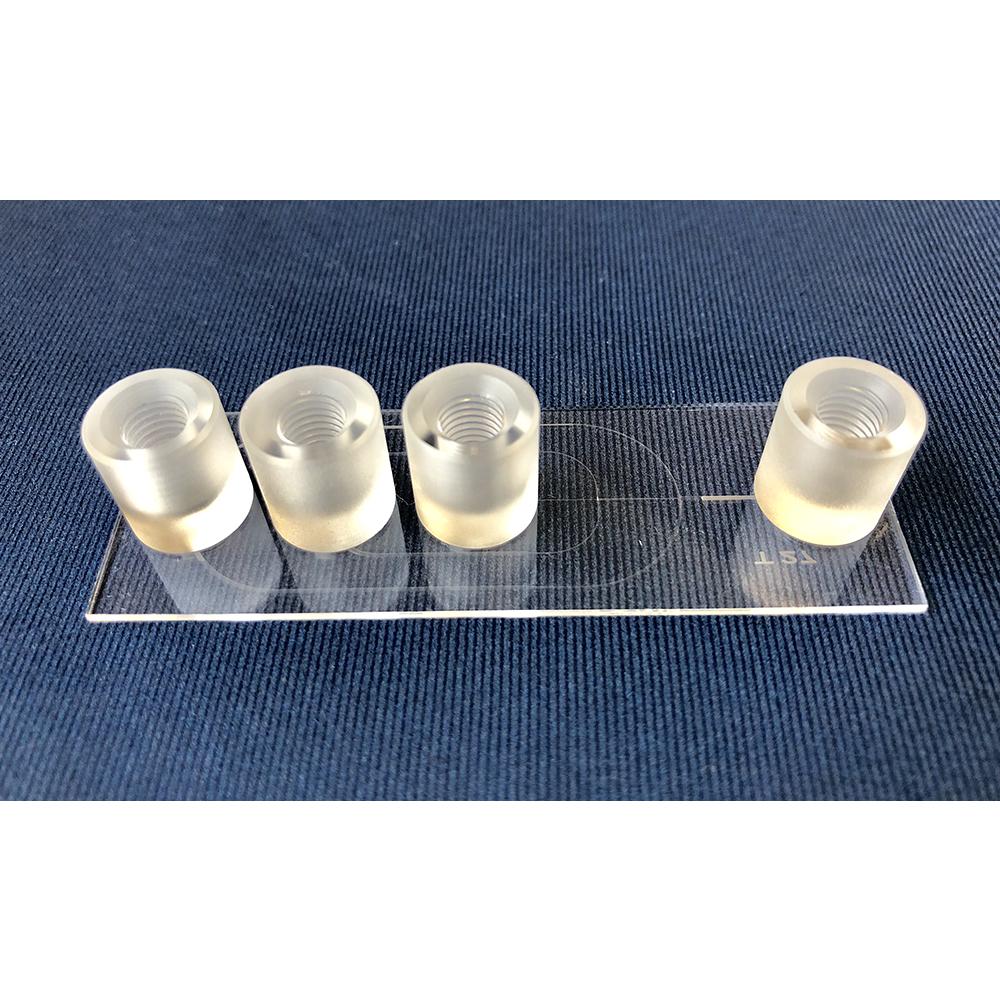

Droplet Generator - Double Emulsion Glass Chip,Microfluidic droplet generators,微流控液滴生成器
型号:Droplet Generator
联系人:李胜亮
联系电话:18618101725
品牌:darwin
微流体液滴发生器(微流控液滴生成器）
用于产生高度可再现的微尺寸液滴的有用工具。 这些双乳液芯片可确保单个液滴和液滴中的液滴生产，具有高精度和高精度。
这些多功能平台的简单设置提供了一种通过zui佳质量的玻璃芯片创建高度单分散气泡和液滴的快速方法。
这些芯片对您的all实验都非常方便，经济实惠且可靠：
高抗性和光学透明玻璃
标准显微镜载玻片尺寸（25 x 75 mm）
易于处理
标准1 / 4-28 UNF螺纹端口
选择不带喷嘴的T-26芯片或带喷嘴的T-27芯片，以便更容易和更规则地生产液滴。
T-26 droplet generator
T-27 droplet generator
General
- Slide format: 25 x 75 m
- Channel depth: 0.05 mm
- Channel width: 0.05 to 0.5 mm
- Volume: 3.3 ?L
- Material: Glass
- Connectors: 1/4″-28 Fittings
T-26 droplet generator
T-27 droplet generator
Principle
The geometry of the intersection where the two phases meet, flow rates and fluid properties (surface tension, viscosity) determine local stresses which deform the liquid interface and lead to the production of drops.
In emulsion science with microfluidics, basically, the drops are formed at the intersection of two immiscible fluids streams. Physically, the influence of the interfacial tension between the two phases governed by Rayleigh-Plateau instability enables the formation of drops. The application of a shear stress on an emulsion droplet causes its elongation, then its rupture.
T-26 and T-27 double emulsion chips ensure a production of single droplets and droplet-in-droplet multilayer systems with high precision and accuracy for applications in the pharmaceutical, cosmetic and food industries.
