All animals must be housed with freely accessible food and water along with properly maintained optimal room temperature. 30 days Post-natal, juvenile rodents can be used for taking part in the experiment.

The overall goal of the weight-drop mTBI model is to generate mild traumatic brain injury in juvenile rodents. This is accomplished by first preparing the injury induction platform. Attach a metal loop to the top end of the desired weight allowing the fishing line to be fastened to the weight. A tin foil is sd with a razor sharp blade making certain that the sd tin foil supports the body weight of the rodent. The foil is then placed on the U-shaped stage made of Plexiglas and securely taped to it. The U-shaped plastic stage is placed in the accurate position under the guide tube made of clear plastic. The plastic guide tube is held in place with a clamp stand and positioned above the sd tin foil. The fishing line is then attached through the metal loop to the weight ensuring that the bottom of the weight hangs freely over the sd tin foil. The fishing line is then connected to the clamp stand, and the weight is drawn up through the plastic guide tube with the fishing line and secured in its position with an Allen key pin.

Next, a rodent is taken and lightly anesthetized until it is non-responsive to a paw or tail pinch. The anesthetized rodent is placed face down on the sd tin foil. Once in place, the Allen key pin is pulled allowing the weight to drop and generate a glancing blow to the head. The animal swiftly undergoes a 180° rotation and lands on the collection sponge. The animal is then placed in a supine position and the time it takes to right itself is recorded.

Like any technical method, certain stages of the protocol are predominantly important to generate reliable outcomes. Primarily, the tin foil should be sd properly to produce the desired effect. If the tin foil is not effectively sd, the force exerted by the weight for the duration of the glancing blow will not be sufficient to thrust the juvenile rodent through the tin foil onto the collection sponge. Hence, the desired rotational acceleration and deceleration will not occur. Secondly, during the induction of the mTBI injury, the level of anesthetic that each rodent is exposed to should remain consistent. An important benefit of this technique over countless other TBI methods is the low level and duration of anesthesiology. However, the juvenile rodent must be non-responsive to a toe or tail pinch to make certain that they do not wake-up on the stage before the injury is produced.

Reliable animal models for inducing mild traumatic brain injury can make use of the modified weight drop mTBI device to induce an injury that strongly embodies the pathophysiology and symptoms related to concussions and repetitive mTBI in the adolescent populations. The implications of this technique extend towards therapy of pediatric concussion and mild traumatic brain injury because the model induces clinically relevant symptomology in a heterogeneous fashion.

The present definition of mTBI states that the injury must be the outcome of acceleration and deceleration forces affiliated with blunt trauma. Therefore, the modified weight drop model described above is the ideal method to use in experiments aiming to study mTBI and concussion-like injuries as it makes use of a glancing impact to transmit quick rotational acceleration and deceleration forces to the brain of the unrestrained animal. These forces imitate the biomechanical forces specifically linked to sports-related injuries and motor vehicle accidents (Mychasiuk et al., 2014).

Additionally, this model can be easily modified to observe repetitive mTBI, an incidence that is rising as a severe medical and socioeconomic issue. Evidence indicates that rodents may possibly be exposed to up to 10 distinctive mTBIs with minimum mortality rates. Furthermore, the technique is inexpensive and can be executed quickly, allowing for a highly thorough examination of numerous therapeutic compounds and treatment controls.

The main advantage of the weight drop mTBI model over others is that the animals are only briefly anesthetized. While the majority of the present TBI techniques impose such intense injuries, it is frequently hard to induce another injury and almost impossible to study repetitive TBI without widespread damage to the entire cortex. However, in the weight drop mTBI technique, a closed head injury is inflicted with no overt damage to the brain which allows the researcher to repeat the injury in the same animal several times.

Another advantage of the weight drop mTBI model is that there’s a rotational component to the injury that generates a more clinically relevant concussive-like symptomology. On the basis of the biomechanical pathophysiology of the induced injury and the behavioral outcomes studied, the modified weight-drop mTBI technique has emerged as a dependable model for the examination of pediatric TBI and concussion. Although preliminary studies of this new model have detected some fundamental molecular and structural transformations, further studies will be required to determine how the brain acts in response to a TBI with this injury etiology.

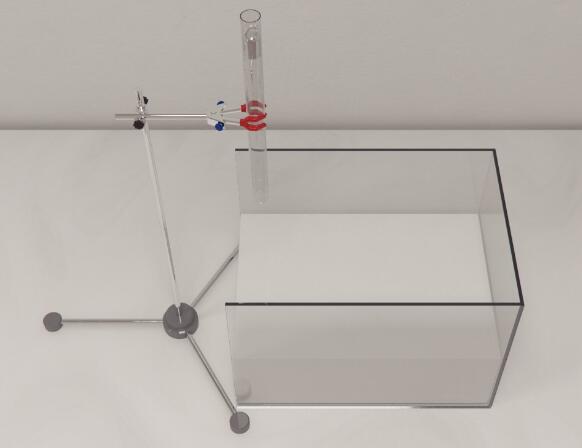

• The weight-drop TBI apparatus is usually comprised of a U-shaped Plexiglas box and a collection sponge and makes use of a plastic guide tube, brass weights, clamp stand, and fishing line.
• The weight drop mTBI model is a technique that generates a glancing blow to the head of a freely moving rodent.
• The blunt force, in turn, transmits acceleration, deceleration, and rotational forces on to the brain that generates more clinically relevant symptoms.
• The closed head injury allows the researcher to study the outcomes of repetitive mTBI in the same animal.

Mychasiuk, R., Farran, A., Angoa-Perez, M., Briggs, D., Kuhn, D., Esser, M. J. A Novel Model of Mild Traumatic Brain Injury for Juvenile Rats. J. Vis. Exp. (94), e51820, doi:10.3791/51820 (2014).

Have Questions? Our experts are here to help

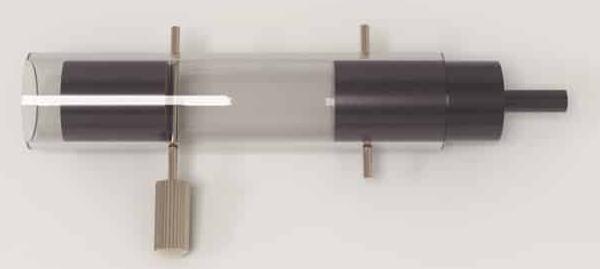

A hollow Teflon tube of length 25 cm and diameter 6 mm is used to house the impounder and the weight. The steel impounder is attached to a horizontal pin that helps guide the weight and prevent the bouncing of the weight on impact. The impounder is 3 cm in height and 5 mm in diameter and has a 1 cm needle of diameter 1.2 mm on its end. The height of the drop can be adjusted to 10 mm or 20 mm above the impounder for mild-moderate or moderate-severe injury, respectively. This is done with the help of a removable pin that supports the Teflon coated stainless steel weight and also functions as the release mechanism for the weight. The retrieval of the weight is done using a rod magnet lowered into the hollow tube.

• The device uses a removable pin to both support the weight at the ideal height and to function as a release mechanism
• The impounder is held in place using a horizontal pin which guides the weight and also prevents it from bouncing on impact
• Retrieval of the weight is done using a rod magnet
• The impounder must be placed perpendicular to the spinal cord to induce symmetrical injuries
