血管张力压缩测试分析系统

型号:caleuniver
联系人:李先生
联系电话:18618101725
品牌:加拿大

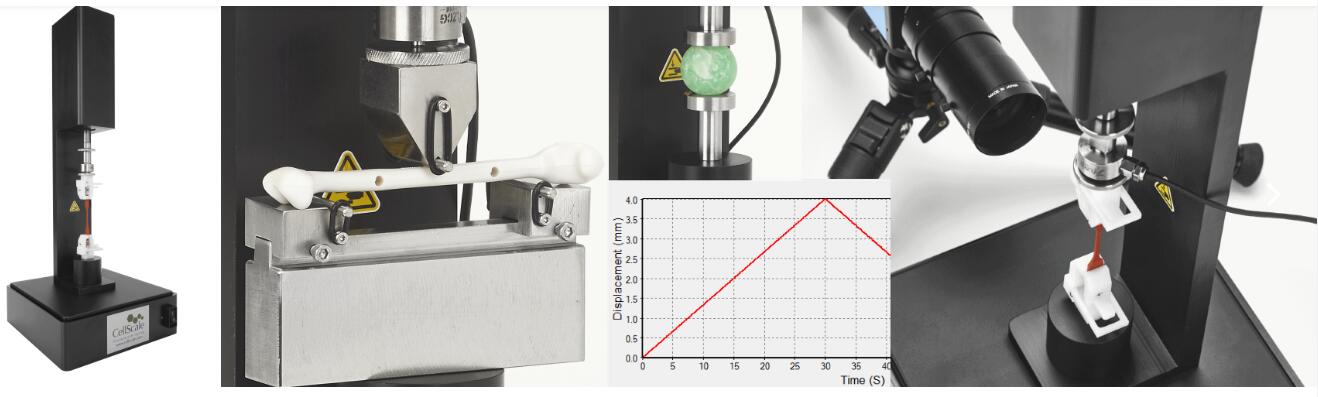

       经济型单轴拉伸压缩和弯曲测试分析系统





随时随地进行您需要的机械测试

UniVert是各种机械测试应用的里想选择,它的占地面积小,价格合理,使用户可以随时随地进行测试。易于使用的软件和可互换的组件使得系统wu需大量的培训或督导即可使用。

该系统能够承受高达200N的拉伸、压缩和弯曲测试。各种夹具和固定装置可用于适应不同的标本和测试模式。

主要势

  • 小体量即可进行质量好、性价比高的测试
  • 夹具和加载传感器的变化易于操作,可以适应各种用途。
  • 使用基于图像的应变测量工具,可实现高分辨率CCD成像(可选)
  • 功能齐的用户界面软件,可通过实时反馈进行简单、循环、松弛和多模式测试
  • 模块化集成温浴水槽,生理温度下测试分析
参数:
外形尺寸 22 X 22 X 54cm
重量 8kg
力的大小 200N
可用的加载传感器 10, 20, 50, 100, 200N
力的准确性 加载传感器容量的0.2%
大夹点分离 140mm
大速度 20mm/s
大循环频率 2Hz
大数据速率 100Hz

相关文献

Instrument Year Title Author Link

UniVert 2019 Preparation And Characterization Of Poly (Ε-Caprolactone) Scaffolds Modified With Cell-Loaded Fibrin Gel E. Malikmammadov, T. E. Tanir, A. Kiziltay, N. Hasirci
UniVert 2019 Characterization Of Single Crystalline Austenitic Stainless Steel Thin Struts Processed By Laser Powder Bed Fusion X. Wang, J.A. Muniz-Lerma, O. Sanchez-Mata, M.A. Shandiz, N. Brodusch, R. Gauvin, M. Brochu
UniVert 2019 Poly(Ester Amide) Particles For Controlled Delivery Of Celecoxib I. J. Villamagna, T. N. Gordon, M. B. Hurtig, F. Beier, E. R. Gillies
UniVert 2019 Effect Of Drug Loading On The Properties Of Temperature‐Responsive Polyester‐Poly(Ethylene Glycol)‐Polyester Hydrogels D. A. Prince, I. J. Villamagna, C. C. Hopkins, J. R. de Bruyn, E. R. Gillies
UniVert 2019 A 3d Printed Pcl/Hydrogel Construct With Zone-Specific Biochemical Composition Mimicking That Of The Meniscus G. Bahcecioglu, N. Hasirci, B. Bilgen, V. Hasirci
UniVert 2019 Evaluation Of Human Dental Pulp Stem Cells Behavior On A Novel Nanobiocomposite Scaffold Prepared For Regenerative Endodontics R. M. Rad, D. Atila, E. E. Akgun, Z. Evis, D. Keskin, A. Tezcaner
UniVert 2019 A Comparative Study Of Monoaxial And Coaxial Pcl/Gelatin/Poloxamer 188 Scaffolds For Bone Tissue Engineering H. A. Alam, A. D. Dalgic, A. Tezcaner, C. Ozen, D. Keskin
UniVert 2019 Development of in-situ Forming Hydrogels for Intra-articular Drug Delivery A. Prince
UniVert 2019 Development of a Novel Functionally Graded Membrane Containing Boron Modified Bioactive Glass Nanoparticles for Guided Bone Regeneration R. M. Rad, D. Atila, Z. Evis, D. Keskin, A. Tezcaner
UniVert 2018 Mechanical Strength Of Nafion®/Zro2 Nano-Composite Membrane R. Sigwadi, F. Nemavhola, S. Dhlamini, T. Mokrani
UniVert 2018 Three-Dimensional Printing Of Bisphenol A-Free Polycarbonates W. Zhu, S-H. Pyo, S. You, C. Yu, J. Alido, J. Liu, Y. Leong, S. Chen
UniVert 2018 Fabrication Of Functionalized Citrus Pectin/Silk Fibroin Scaffolds For Skin Tissue Engineering. S. Tukkan, D. Atila, A. Akdaq, A. Tezcaner
UniVert 2018 Rapid Continuous 3d Printing Of Customizable Peripheral Nerve Guidance Conduits W. Zhu, K.R. Tringale, S.A. Woller, S. You, S. Johnson, H. Shen, J. Schimelman, M. Whitney, J. Steinauer, W. Xu, T.L. Yaksh, Q.T. Nguyen, S.Chen
UniVert 2018 Functionalization Of Silk Fibroin Through Anionic Fibroin Derived Polypeptides G. Griffanti, M. James-Bhasin, I. Donelli, G. Freddi, S.N. Nazhat
UniVert 2018 A Novel Gelma-Phema Hydrogel Nerve Guide For The Treatment Of Peripheral Nerve Damages T.D. Usal, D. Yucel, V. Hasirci
UniVert 2018 Microstructure And Mechanical Properties Of Stainless Steel 316l Vertical Struts Manufactured By Laser Powder Bed Fusion Process X. Wang, J.A. Muniz-Lerma, O. Sanchez-Mata, M.A. Shandiz, M. Brochu
UniVert 2018 One-Step Fabrication Of Apatite-Chitosan Scaffold As A Potential Injectable Construct For Bone Tissue Engineering K. Jahan, M. Mekhail, M. Tabrizian
UniVert 2018 Skin Stiffness In Ray‐Finned Fishes: Contrasting Material Properties Between Species And Body Regions C.P. Kenaley, A. Sanin, J. Ackerman, J. Yoo, A. Alberts
UniVert 2017 A Highly Deformable Conducting Traces For Printed Antennas And Interconnects: Silver/Fluoropolymer Composite Amalgamated By Triethanolamine A. Kumar, H. Saghlatoon, T-G. La, M. M. Honari, H. Charaya, H.A. Damis, R. Mirzavand, P. Mousavi, H-J. Chung
UniVert 2017 Self-Reinforcing Graphene Coatings On 3d Printed Elastomers For Flexible Radio Frequency Antennas And Strain Sensors X. Li, M.M. Honari, Y. Fu, A. Kumar, H. Saghlatoon
UniVert 2016 Development Of An Infusion Bioreactor For The Accelerated Preparation Of Decellularized letal Muscle Scaffolds B. M. Kasukonis, J.T. Kim, T.A. Washington, J.C. Wolchok
UniVert 2016 The Global Mechanical Properties And Multi-Scale Failure Mechanics Of Heterogeneous Human Stratum Corneum X. Liu, J. Cleary, G.K. German
