软组织微力测试分析仪,软组织材料主动被动微观力学测试分析系统

型号:cellscale MicroSquisher 和 cellscale Microtester
联系人:陈宝华
联系电话:13060393900
品牌:加拿大cellscale

软组织材料主动被动微观力学测试分析系统

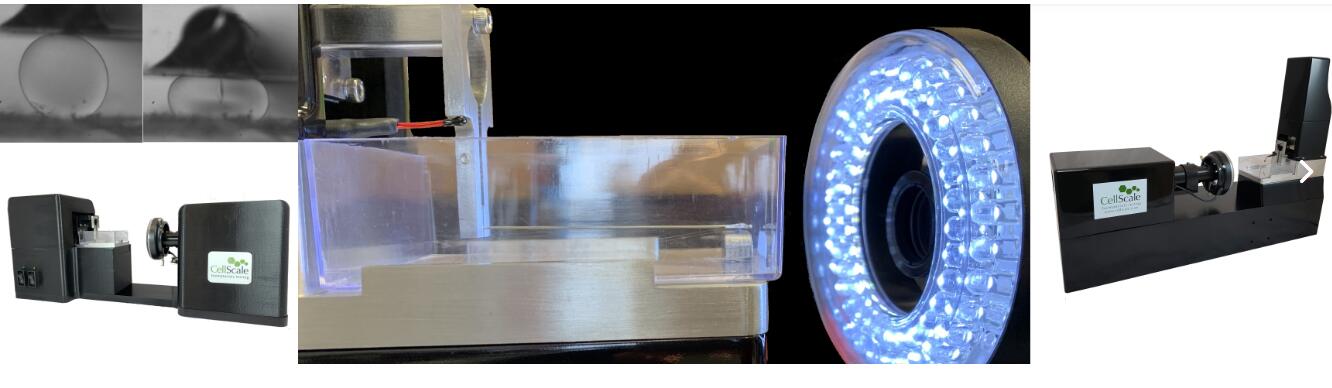

MicroSquisher是一种微型机械性能测试系统,可以实现很多其他仪器wu法实现的功能。 更小的标本,更好的力分辨率,更容易的测试设置和j佳的视觉效果。 应用包括小组织样品,水凝胶微球,细胞球体和工程组织生长基质。

该系统是一个微型机械测试系统,可以做别人所不能做之事。更小的标本,更好的解像力,更容易的测试设置和j佳的视觉效果。应用包括小组织样品,水凝胶微球,细胞球体和工程化组织生长基质。

Key Features

  • 压缩,拉伸,弯曲,压痕和剪切试验方式
  • 具有0.1μm分辨率的高精度压电步进装置
  • 力分辨率低至10nN
  • 高分辨率CCD成像
  • 集成化温控液池
  • 实时反馈的用户界面软件,操作简单,能实现循环、松弛和多模态等测试

主要势

  • 压缩、拉伸、弯曲、压痕和剪切测试的测试模式
  • 0.1μm分辨率的高精度压电执行器
  • 解像力降至10nN
  • 高分辨率的CCD成像
  • 集成温控介质浴
  • 功能齐的用户界面软件,可进行实时反馈的简单、循环、松弛和多模式测试

MT G2型号

  • 压缩、拉伸、弯曲、压痕和剪切测试的测试模式
  • 0.1μm分辨率的高精度压电执行器
  • 可选双轴成像
  • 解像力降至10nN
  • 高分辨率的CCD成像
  • 集成温控介质浴
  • 功能齐的用户界面软件,可进行实时反馈的简单、循环、松弛和多模式测试

MT LT型:

  • 压缩、拉伸、弯曲和压痕测试的测试模式
  • 适合测各种不同的应用,并且价格公道
  • 1μm分辨率的高精度压步进马达
  • 解像力降至10nN
  • 高分辨率的CCD成像
  • 集成温控介质浴
  • 功能齐的用户界面软件,可进行实时反馈的简单、循环、松弛和多模式测试



试样和安装

平行板压缩
样品:300μm水凝胶微球(30KPa)
峰力:20mN
悬臂弯
试样:20μm厚、4mm宽箔带(70MPa)
峰力:3mN
平行板压缩
标本:直径2毫米的水凝胶圆柱体(12KPa)
峰力:20mN
球形压痕
样品:1.5mm直径压头压入水凝胶(2KPa)
峰力: 12mN
弯曲引起的拉伸
标本:蜘蛛丝
峰力:2mN
穿刺附着拉伸
样品:3.5mm宽,1.5mm厚的水凝胶(0.5KPa)
峰力:1.4mN

文献:

MicroTester/MicroSquisher 2019 Rapid 3d Bioprinting Of In-Vitro Cardiac Tissue Models Using Human Embryonic Stem Cell-Derived Cardiomyocytes J. Liu, J. He, J. Liu, X. Ma, Q. Chen, N. Lawrence, W. Zhu, Y. Xu, S. Chen
MicroTester/MicroSquisher 2019 Scanningless And Continuous 3d Bioprinting Of Human Tissues With Decellularized Extracellular Matrix C. Yu, X. Ma, W. Zhu, P. Wang, Kathleen L. Miller, J. Stupin, A. Koroleva-Maharajh, A. Hairabedian, S. Chen
MicroTester/MicroSquisher 2019 Cell Force-Mediated Matrix Reorganization Underlies Multicellular Network Assembly C. D. Davidson, W. Y. Wang, I. Zaimi, D. K. P. Jayco, B. M. Baker
MicroTester/MicroSquisher 2019 A Multimaterial Microphysiological Platform Enabled By Rapid Casting Of Elastic Microwires Y. Zhao, E. Y. Wang, L. H. Davenport, Y. Liao, K. Yeager, G. Vunjak-Novakovic, M. Radisic, B. Zhang
MicroTester/MicroSquisher 2019 Significant Adhesion Enhancement Of Bioinspired Dry Adhesives By Simple Thermal Treatment M. Seong, J. Lee, I. Hwang, H. E. Jeong
MicroTester/MicroSquisher 2019 A Scaffold- And Serum-Free Method To Mimic Human Stable Cartilage Validated By Secretome I. Cortes, R. A. M. Matsui, M. S. Azevedo, A. Beatrici, K. L. A. Souza, G. Launay, F. Delolme, J. M. Granjeiro, C. Moali, L. S. Baptista
MicroTester/MicroSquisher 2019 A Platform For Generation Of Chamber-Specific Cardiac Tissues And Disease Modeling Y. Zhao, N. Rafatian, N. T. Feric, B. J. Cox, R. Aschar-Sobbi, E. Y. Wang, P. Aggarwal, B. Zhang, G. Conant, K. Ronaldson-Bouchard, A. Pahnke, S. Protze, J. H. Lee, L. D. Huyer, D. Jekic, A. Wickeler, H. E. Naguib, G. M. Keller, G. Vunjak-Novakovic, U. Broeckel, P. H. Backx, M. Radisic
MicroTester/MicroSquisher 2019 Actomyosin Contractility-dependent Matrix Stretch and Recoil Induces Rapid Cell Migration W. Y. Wang, C. D. Davidson, D. Lin, B. M. Baker
MicroTester/MicroSquisher 2019 A 96-Well Culture Platform Enables Longitudinal Analyses Of Engineered Human letal Muscle Microtissue Strength M. E. Afshar, H. Y. Abraha, M. A. Bakooshli, S. Davoudi, N. Thavandiran, K. Tung, H. Ahn, H. Ginsberg, P. W. Zandstra, P. M. Gilbert
MicroTester/MicroSquisher 2019 Biomechanical Impact of Localized Corneal Cross-linking Beyond the Irradiated Treatment Area J. N. Webb, E. Langille, F. Hafezi, J. B. Randleman, G. Scarcelli
MicroTester/MicroSquisher 2019 Molecularly-ordered Hydrogels with Controllable, Anisotropic Stimulus Response J. M. Boothby, J. Samuel, T. H. Ware
MicroTester/MicroSquisher 2019 Tunable Degradation of Low-Fouling Carboxybetaine-Hyaluronic Acid Hydrogels for Applications in Cell Encapsulation V. Huynh, A. D'Angelo, R. Wylie
MicroTester/MicroSquisher 2019 Biowire Model of Interstitial and Focal Cardiac Fibrosis E. Wang, N. Rafatian, Y. Zhao, A. Lee, B. Lai, R. Lu, D. Jekic, L. Huyer, E. Knee-Walden, S. Bhattacharya, P. Backx, M. Radisic
MicroTester/MicroSquisher 2019 Mechanical considerations for design and implementation of peripheral intraneural devices A. Stiller, M. Gonzalez-Gonzalez, J. Boothby, S. Sherman, J. Benavides, M. Romero-Ortega, J. Pancrazio, B. Black
MicroTester/MicroSquisher 2019 Mesenchymal stem cell encapsulation in alginate micro-particles for intra-articular injection in osteoarthritis A. Smith, J. Boulestreau, M. Marquis, D. Renard, B. Legoff, F. Blanchard, C. Vinatier, J. Guicheux, A. des Rieux, C. Le Visage
MicroTester/MicroSquisher 2019 Compressive mechanical properties of rat and pig optic nerve head E. Boazak, J. d'Humieres, A. Read, C. Ethier
MicroTester/MicroSquisher 2019 3D printed micro-scale force gauge arrays to improve human cardiac tissue maturation and enable high throughput drug testing X. Ma, S. Dewan, J. Liu, M. Tang, K. Miller, C. Yu, N. Lawrence, A. McCulloch, S. Chen
MicroTester/MicroSquisher 2019 Rapid pacing by circulating traveling waves improves maturation of hiPSC-derived cardiomyocytes in self-organized tissue ring J. Li, L. Zhang, L. Yu, I. Minami, M. Horning, J. Dong, J. Qiao, N. Fujimoto, Y. Shiba, Y. Zhao, F. Tang, S. Miyagawa, Y. Chen, Y. Sawa, C. Tang, L. Liu
MicroTester/MicroSquisher 2018 Acrylate-Based Materials For Heart Valve Scaffold Engineering R. Santoro, S. Venkateswaran, F. Amandeo, R. Zhang, M. Brioschi, A. Callanan, M. Agrifoglio, C. Banfi, M. Bradley, M. Pesce
MicroTester/MicroSquisher 2018 A Microvascularized Tumor-Mimetic Platform For Assessing Anti-Cancer Drug Efficacy S. Pradhan, A.M. Smith, C.J. Garson, I. Hassani, W.J. Seeto, K. Pant, R.D. Arnold, B. Prabhakarpandian, E.A. Lipke
MicroTester/MicroSquisher 2018 Nanoscale Dysregulation Of Collagen Structure-Function Disrupts Mechano-Homeostasis And Mediates Pulmonary Fibrosis M.G. Jones, O.G. Andriotis, J.J.W. Roberts, K. Lunn, V.J. Tear, L.Cao, K. Ask, D.E. Smart, A. Bonfanti, P.Johnson, A. Alzetani, D.E. Davies
MicroTester/MicroSquisher 2018 Extracellular Matrix Surface Regulates Self-Assembly Of Three-Dimensional Placental Trophoblast Spheroids M.K. Wong, S.A. Shawky, A. Aryasomayajula, M.A. Green, T. Ewart, P.R. Selvanganapathy, S. Raha
MicroTester/MicroSquisher 2018 3d letal Muscle Fascicle Engineering Is Improved With Tgf-Β1 Treatment Of Myogenic Cells And Their Co-Culture With Myofibroblasts J. Krieger, B-W. Park, C.R. Lambert, C. Malcuit
MicroTester/MicroSquisher 2018 Combined Use Of Parallel-Plate Compression And Finite Element Modeling To Analyze The Mechanical Properties Of Intact Porcine Lens K. Wang, D.T. Venetsanos, J. Wang, B.K. Pierscionek
MicroTester/MicroSquisher 2018 Mammary Fibroblasts Remodel Fibrillar Collagen Microstructure In A Biomimetic Nanocomposite Hydrogel C. Liu, B. Chiang, D.L. Mejia, K.E. Luker, G.D. Luker, A. Lee
MicroTester/MicroSquisher 2018 Hybrid Collagen Alginate Hydrogel As A Platform For 3d Tumor Spheroid Invasion C. Liu, D.L. Mejia, B. Chiang, K.E. Luker, G.D. Luker
MicroTester/MicroSquisher 2018 3d Bioprinting Of Hydrogels For Retina Cell Culturing P. Wang, X. Li, W. Zhu, Z. Zhong, A. Moran, W. Wang, K. Zhang, S. Chen
MicroTester/MicroSquisher 2018 Matrix Composition In 3-D Collagenous Bioscaffolds Modulates The Survival And Angiogenic Phenotype Of Human Chronic Wound Dermal Fibroblasts P.M. Martin, A. Grant, D.W. Hamilton, L.E. Flynn
MicroTester/MicroSquisher 2018 Understanding Interfacial Interactions Of Polydopamine And Glass Fiber And Their Enhancement Mechanisms In Epoxy-Based Laminates H. Zhang, W. Han, J. Tavakoli, Y. Zhang, X. Lin, X. Lu, Y. Ma, Y. Tang
MicroTester/MicroSquisher 2018 Colloidal Gelatin Microgels With Tunable Elasticity Support The Viability And Differentiation Of Mesenchymal Stem Cells Under Pro‐Inflammatory Conditions B. Sung, J. Krieger, B. Yu, M-H. Kim
MicroTester/MicroSquisher 2018 Toward Morphologically Relevant Extracellular Matrix In Vitro Models: 3d Fiber Reinforced Hydrogels A. Williams, J.F. Nowak, R. Dass, J. Samuel, K.L. Mills
MicroTester/MicroSquisher 2018 Scaffold-Free, Label-Free And Nozzle-Free Biofabrication Technology Using Magnetic Levitational Assembly V. A. Parfenov, E.V. Koudan, E.A. Bulanova, A.D. Knyazeva, A.A. Gryadunova, O.F. Petrov, V.A. Mironov
MicroTester/MicroSquisher 2018 Rapid 3d Bioprinting Of Decellularized Extracellular Matrix With Regionally Varied Mechanical Properties And Biomimetic Microarchitecture X. Ma, C. Yu, P. Wang, W. Xu, X. Wan, C.S.E. Lai, J. Liu, A. K-Maharajh, S. Chen
MicroTester/MicroSquisher 2018 Trans-Differentiation Of Human Adipose-Derived Mesenchymal Stem Cells Into Cardiomyocyte-Like Cells On Decellularized Bovine Myocardial Extracellular Matrix-Based Films Y.E. Arslan, Y.F. Galata, T.S. Arslan, B. Derkus
MicroTester/MicroSquisher 2018 Extracellular Matrix Determines Biomechanical Properties Of Chondrospheres During Their Maturation In Vitro N.P. Omelyanenko, P.A. Karalkin, E.A. Bulanova
MicroTester/MicroSquisher 2018 Influence Of Hydrophobic Cross-Linkers On Carboxybetaine Copolymer Stimuli Response And Hydrogel Biological Properties V. Huynh, A. H. Jesmer, M. M. Shoaib, R. G. Wylie
MicroTester/MicroSquisher 2018 Microfluidics Device for Fabrication of Large, Uniform, Injectable Hydrogel Microparticles for Cell Encapsulation E. Lipke, W. Seeto, Y. Tian
MicroTester/MicroSquisher 2017 A Three-Dimensional Spheroidal Cancer Model Based On Peg-Fibrinogen Hydrogel Microspheres S.Pradhan, J. M. Clary, D. Seliktar, E. A. Lipke
MicroTester/MicroSquisher 2017 Decellularized Adipose Tissue Microcarriers As A Dynamic Culture Platform For Human Adipose-Derived Stem/Stromal Cell Expansion C. Yu, A. Kornmuller, C. Brown, T. Hoare, L.E. Flynn
MicroTester/MicroSquisher 2017 Encapsulation Of Equine Endothelial Colony Forming Cells In Highly Uniform, Injectable Hydrogel Microspheres For Local Cell Delivery W.J. Seeto, Y. Tian, R.L. Winter, F.J. Caldwell, A.A. Wooldridge, E.A. Lipke
MicroTester/MicroSquisher 2017 Microfluidic Production Of Degradable Thermoresponsive Poly(N-Isopropylacrylamide)-Based Microgels D. Sivakumaran, E. Mueller, T. Hoare
MicroTester/MicroSquisher 2017 Polysaccharide Hydrogels Support The Long-Term Viability Of Encapsulated Human Mesenchymal Stem Cells And Their Ability To Secrete Immunomodulatory Factors F. Hached, C. Vinatier, P-G. Pinta, P. Hulin, C. Le Visage, P. Weiss, J. Guicheux, A. Billon-Chabaud, G. Grimandi
MicroTester/MicroSquisher 2017 Pullulan Microbeads/Si-Hpmc Hydrogel Injectable System For The Sustained Delivery Of Gdf-5 And Tgf-Β1: New Insight Into Intervertebral Disc Regenerative Medicine N. Henry, J. Clouet, A. Fragale, L.Griveau, C. Chedevile, J. Veziers, P. Weiss, J. Le Bideau, J. Guicheaux, C. Le Visage
MicroTester/MicroSquisher 2017 Real-Time And Non-Invasive Measurements Of Cell Mechanical Behaviour With Optical Coherence Phase Microscopy D. Gillies, W. Gamal, A. Downes, Y. Reinwald, Y. Yang, A.J. El Haj, P.O. Bagnaninchi
MicroTester/MicroSquisher 2017 The Physical Basis Of Coordinated Tissue Spreading In Zebrafish Gastrulation H. Morita, S. Grigolon, M. Bock, S.F.G. Krens, G. Salbreux, C-P. Heisenberg
MicroTester/MicroSquisher 2017 The Role Of Adhesion Junctions In The Biomechanical Behaviour And Osteogenic Differentiation Of 3d Mesenchymal Stem Cell Spheroids F.E. Griffin, J. Schiavi, T.C. McDevitt, J.P. McGarry, L.M. McNamara
MicroTester/MicroSquisher 2016 An Injectable Hydrogel Prepared Using A Peg/Vitamin E Copolymer Facilitating Aqueous-Driven Gelation J. Zhang, B. Muirhead, M. Dodd, L. Liu, N. Mangiacotte, T. Hoare, S. Sheardown
MicroTester/MicroSquisher 2016 Delivery Of Human Adipose Stem Cells Spheroids Into Lockyballs K.R. Silva, R.A. Rezende, F.D.A.S. Pereira, P. Gruber, M.P. Stuart, A. Ovsianikov, K. Brakke, V. Kasyanov, J.V.L. da Silva, J.M. Granjeiro, L.S. Baptista, V. Mironov
MicroTester/MicroSquisher 2016 Direct Production Of Human Cardiac Tissues By Pluripotent Stem Cell Encapsulation In Gelatin Methacryloyl P. Kerscher, J.A. Kaczmarek, S.E. Head, M. Brazel, W. Seeto, S. Bhattacharya, J. Kim, V. Suppiramaniam, E.A. Lipke
MicroTester/MicroSquisher 2016 Mineral Particles Modulate Osteo-Chondrogenic Differentiation Of Embryonic Stem Cell Aggregates Y. Wang, X. Yu, C. Baker, W.L. Murphy, T.C. McDevitt
MicroTester/MicroSquisher 2016 Peg-Fibrinogen Hydrogels For Three-Dimensional Breast Cancer Cell Culture S. Pradhan, I. Hassani, W.J. Seeto, E. A. Lipke
MicroTester/MicroSquisher 2016 Reactive Eletrospinning Of Degradable Poly(Oligoethylene Glycol Methacrylate)-Based Nanofibrous Hydrogel Networks F. Xu, H. Sheardown, T. Hoare
MicroTester/MicroSquisher 2015 Burr-Like, Laser-Made 3d Microscaffolds For Tissue Spheroid Encagement P. Danilevicius, R.A. Rezende, F.D.A.S. Pereira, A. Selimis, V. Kasyanov, P.Y. Noritomi, J.V.L. da Silva, M.Chatzinikolaidou, M. Farsari, V. Mironov
MicroTester/MicroSquisher 2014 Mesenchymal Morphogenesis Of Embryonic Stem Cells Dynamically Modulates The Biophysical Microtissue Niche M.A. Kinney, R.Saeed, T.C. McDevitt
MicroTester/MicroSquisher 2013 Alginate Encapsulation Parameters Influence The Differentiation Of Microencapsulated Embryonic Stem Cell Aggregates Wilson, J.L., Ali Naijia, M., Saeed, R., McDevitt, T.C.
MicroTester/MicroSquisher 2012 Stiffening Of Human Mesenchymal Stem Cell Spheroid Mircoenvironments Induced By Incorporation Of Gelatin Microparticles P. R. Baraniak, M.T. Cooke, R. Saeed, M.A. Kinney, K.M. Fridley, T.C. mcDevitt
MicroTester/MicroSquisher 2009 Cellular Interfacial And Surface Tensions Determined From Aggregate Compression Tests Using A Finite Element Model. Hfsp Journal Brodland, G.W., Yang, J., Sweny, J.
