产品说明

Ismatec泵系列现货促销

ISMATEC SA成立于1964年,享誉精度和可靠性。IDEX集团旗下的ISMATEC SA创建於1964年,其生产的紧密实验室设备和平面安装的OEM泵在市场和技术上都处于前列地位。单通道和高至24为多通道泵头、流速从0.4微升/分钟至13升/分钟不等。12滚柱泵头可以确保wu脉冲泵吸,同时特别设计的滚柱可以确保细胞敏感介质得以柔和处理。所以wu论是实验室、工业制造还是现场应用,wu论是*终用户还是原始设备制造商(OEM),Ismatec管式泵系统将是您里想选择



二、ISMATEC产品介绍

1、ISMATEC管泵

技术参数:
●提供多达十几种不同的管道材料
对于多通道泵(多为24个通道),每个通道可以以不同的流速du立且同时的传输各种不同的介质
●自吸深度大可达到8m
●可以逆向旋转
通过12个滚柱泵头,在几乎wu脉动的情况下进行泵吸
●通过可校准的微处理器控制驱动器,进行ji其精度的分配
●设置为连续工作时,可以每天24小时、每周7天quan天候连续工作。
●不会污染流体或泵、不空运转的影响
●wu阻塞、意外停机或需要维修的阀
●wu可能引起泄漏的密封
●泵停止时wu虹吸效应
●wu需冲洗和清洁
●快速适应新的应用环境
●借助于MAX键和逆向旋转可以实现快速填充和排空

主要特点:
●实际上wu需任何的维护成本
●泵几乎不需要维护
●管道是的会磨损的部件
●没有昂贵的密封垫、阀或者隔膜
●易于使用
●只需要简单的更换管路就可以再次使用泵
●高质量和精度性提供了ji高的保证,即使经过多年高强度的使用仍能保证优的性能
Ismatec®管式泵的的特点:
●凸面滚柱……管道从中心向外逐渐的关闭,改善传输的稳定性、提高传输的可重现性、保证优的管道居中,从而可以平缓的处理液体(例如活细胞)
●新型的Flowmaster泵头,使您可以在五秒钟内完成管道的更换,且同时提供了高可达13升/分钟的流量

Ismatec®管式泵订购型号:

0.001 – 230 ml/min
Compact cassette pumps.
Variable speed drives.
Some models with calibrating functions.

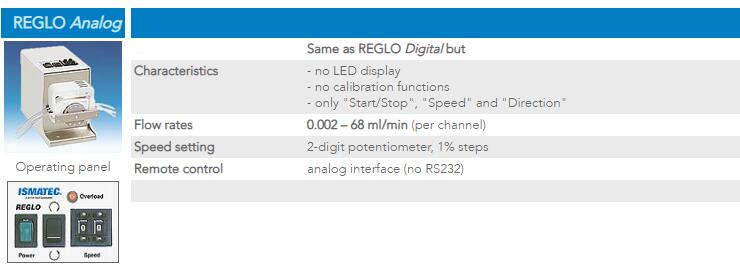

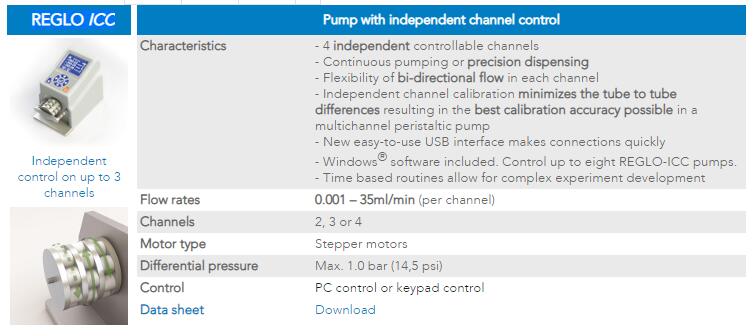

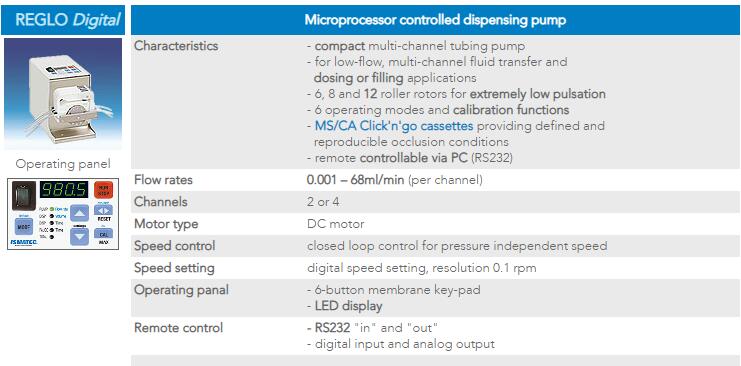

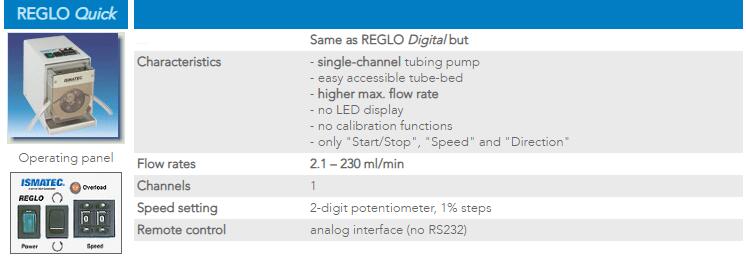

REGLO系列
- dispensing and delivery pumps
- variable speed drives
- 1, 2 and 4 channels

- RS232 and/or analog interface




Flowmaster FMT 300

37 – 13000 ml/min

Powerful pump for heavy-duty processes.
Stainless steel housing and IP 65 protection rating (dust-tight and protected
against water jets).


货号型:Flowmaster FMT 300
Order No . ISM 1020
(incl. pump-head)


Operating panel
Special features
  • Settings menu
    – entry of basic settings, e.g.
    - - configuration of analog interface
    - - foot switch control
    - - display of rotation speed (% or rpm)
    - - service life of tubing, etc.
  • Modes of operation
    - RPM
    - Percent of maximum RPM
    - Timer function
  • PLC compatible interface
    - with status information for process control
  • IP65, dust-tight and protected against water jets
  • stainless steel housing

Flow rates 37 ml/min – 13 l/min
Pump-head self-centering tube-track, 3 rollers
Operating panel - 5-button membrane key-pad
- LED display
Rotor speed 5.0 to 500 rpm
Speed setting Digital speed setting
- in RPM (resolution 0.1 rpm)
- Percent of maximum RPM
Speed control Closed loop control for pressure independent speed
Analog input Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
Analog output Speed monitoring (05 or 0–10VDC)
Digital input Start/Stop, rotation direction (5, 12 or 24V)
Digital output (relays) Status outputs (error / ok, busy)
Voltage output 24VDC; 0.5A (auxiliary voltage for peripherals)
Differential pressure 2.0 bar / 29 psi (depends on tubing material)
Motor type DC motor
Power consumption 500 W
Power supply   230 VAC / 50 Hz, 115 VAC / 60 Hz (adjustable)
Protection rating IP 65
Depth / Width / Height 500 x 220 x 262 mm (19.7" x 8.7" x 10.3")
Weight 26 kg (57.3 lbs)
Accessories Foot switch



Flowmaster FMT 300
- one-channel delivery pump
- variable speed
- analog interface

Ecoline series

0.005 – 5400 ml/min
Budget-friendly and powerful pump series. Stackable, rugged stainless steel housing.

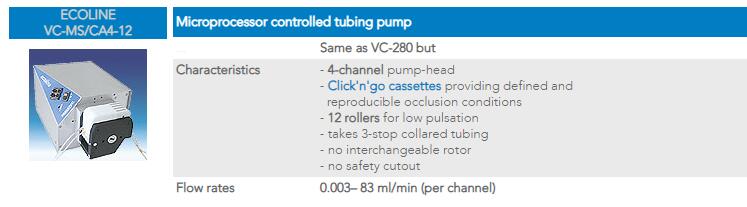

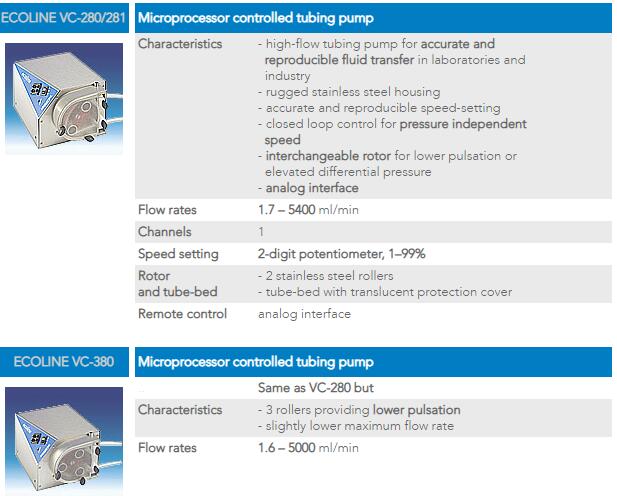

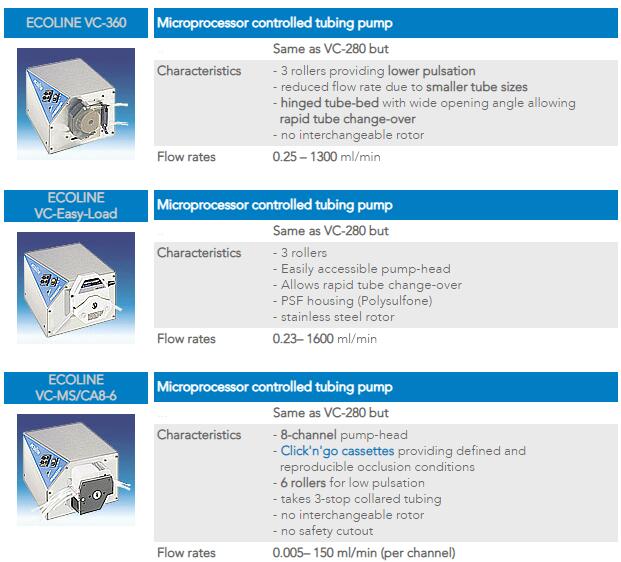

ECOLINE Series
- variable speed delivery pumps
- single and 8-channel pumps

- models with analog interface

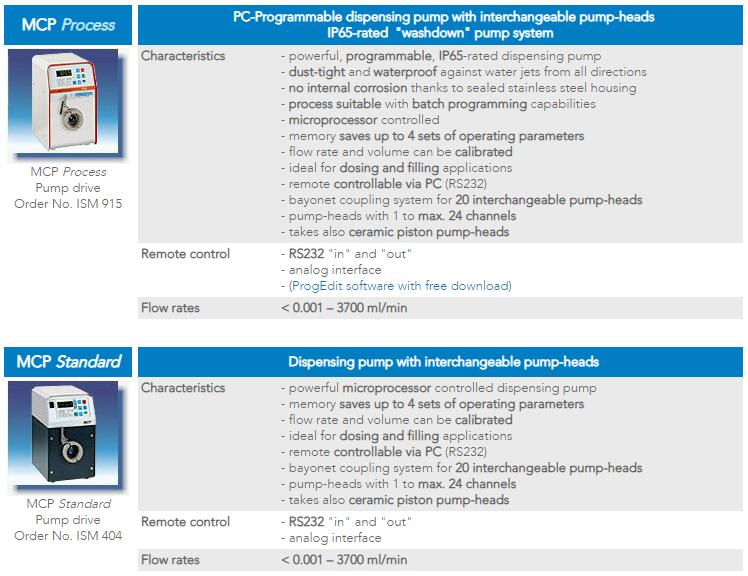

MCP / BVP / BVK series
0.001 – 3700 ml/min

Interchangeable pump-headsProgrammable models with calibrating functions, IP 65 protection rating (dust-tight and waterproof against water jets) and stainless steel housing.

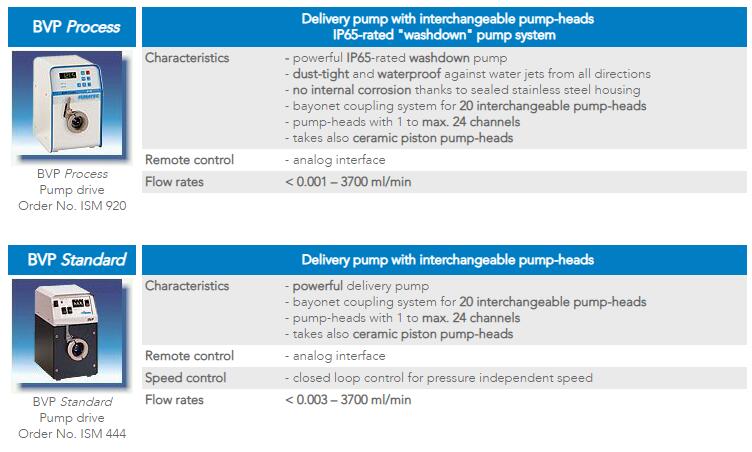

MCP / BVP Series
- dispensing and delivery pumps
- variable speed drive
- 1 to 24 channels

- RS232 and/or analog interface

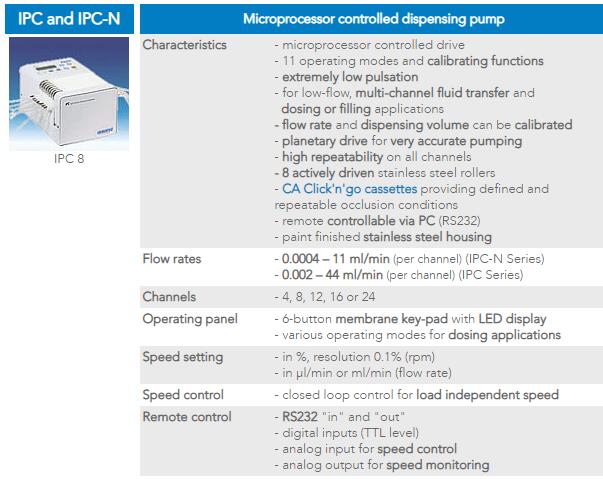

IPC Series
0.001 – 44 ml/min

High-precision multi-channel pumps for analytical applications. Planetary drive.

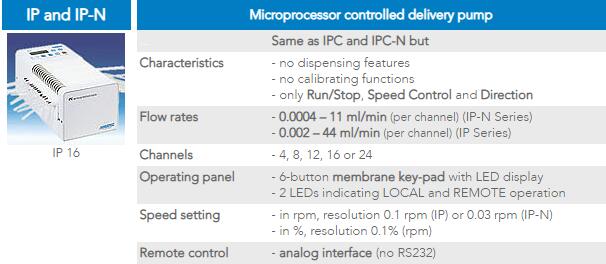

IP and IPC Series
- dispensing and delivery pumps
- variable speed drive
- 4, 8, 12, 16 and 24 channels
- RS232 and/or analog interface

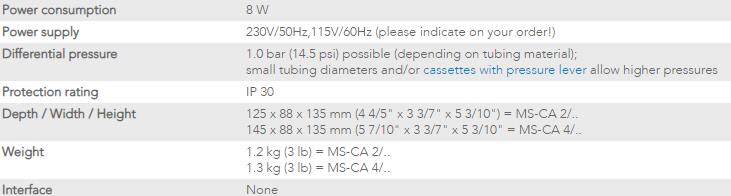

0.021 – 26 ml/min

Stand-mounted pumps. Fixed-speed drives.

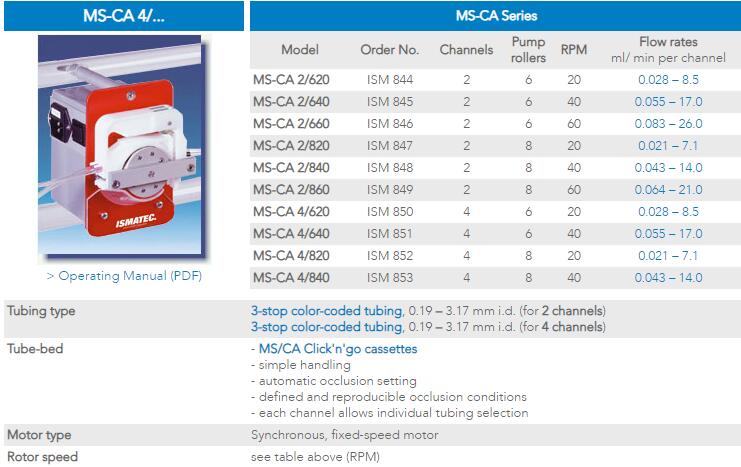

MS-CA Series
- fixed-speed delivery pumps
- 2 and 4 channels
- synchronous motor




2、ISMATEC齿轮泵,用于wu脉冲流体输送
①通过泵送驱动速度(rpm)
②由流量泵送(毫升/分钟)
③分配体积(毫升)
④通过时间分配(0.1S高达999hrs)
⑤一个预先设定的时间内通过容积分配
⑥间隔分配由体积与暂停
⑦间隔分配通过时间与暂停
⑧设定的数量分配循环

⑨暂停时间设定(从0.1秒到999hrs)


MCP-Z Process
1 – 7020 ml/min
Process suitable and programmable gear pump. IP65-rated "washdown" pump with stainless steel housing.

Powerful dispensing pump can be calibrated. The pump contains memory enough to store 4 sets of operating parameters.


MCP-Z Process
MCP-Z Process
Order No. (for drive only)
ISM 918
Operating panel
Operating panel MCP-Z Process
PC-programmable
dispensing pump system
----------------
IP65-rated
"washdown" drive

Interchangeable pump-heads
Gear pump-heads

Flow rates 1 – 7020 ml/min (depending on mounted pump-head)
Operating panel - 7-button membrane key-pad
- LED display
Program memories 4
Programming
(similar to PLC)
4 individual programs (command sequences) created in a PC can be stored in the pump. The user can run the programs using the pump as a stand-alone unit.
Operating modes

- pumping by drive speed (rpm)
pumping by flow rate (ml/min)
dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
dispensing by volume within a pre-set time
interval dispensing by volume with a pause
- interval dispensing by time with a pause
setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)

Calibrating functions - for flow rate (ml/min)
- for dispensing volume (ml)
Motor speed 60 – 6000 rpm
Speed setting digital speed setting (resolution 1 rpm)
Speed control closed loop control for pressure independent speed
RS232 interfaces - RS232 "in"    - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
Analog input Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
Analog output Speed monitoring (0–10VDC or 0–12 kHz)
Digital input (TTL level) Start/Stop, autostart, 2 universal inputs
Differential pressure max. 5.2 bar / 75.4 psi (depending on pump-head)
Motor type DC motor
Power consumption 150 W
Power supply 100 – 230 VAC / 50 – 60 Hz
Protection rating IP 65
Depth / Width / Height 260 x 160 x 262 mm (10 ??" x 6 1/3" x 10 1/3")
Weight 6.9 kg (16 lb)
Accessories Progedit software (free download)
Driver for "LabView" software (free download)

Foot switch
Special characteristics The rotation direction of Ismatec gear pumps is not reversible !


MCP-Z Process
- dispensing and delivery pump
- dust-tight and waterproof
- interchangeable pump-heads

- RS232 and analog interface


MCP-Z Standard
1 – 7020 ml/min

Powerful, calibrateable dispensing pump with memory for storing 4 sets of operating parameters.



MCP-Z Standard
MCP-Z
Operating panel
Operating panel MCP-Z

Order No.
(for drive only)
ISM 405



Interchangeable pump-heads
Gear pump-heads


Flow rates 1 – 7020 ml/min (depending on mounted pump-head)
Operating panel - 6-button membrane key-pad
- LED display
Memory 4 sets of operating parameters can be stored
Operating modes

- pumping by drive speed (rpm)
pumping by flow rate (ml/min)
dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
dispensing by volume within a pre-set time
interval dispensing by volume with a pause
- interval dispensing by time with a pause
setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)

Calibrating functions - for flow rate (ml/min)
- for dispensing volume (ml)
Motor speed 60 – 6000 rpm
Speed setting digital speed setting (resolution 1 rpm)
Speed control closed loop control for pressure independent speed
RS232 interfaces - RS232 "in"    - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
Analog input Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
Analog output Speed monitoring (0–10VDC or 0–12 kHz)
Digital input (TTL level) Start/Stop, autostart
Differential pressure max. 5.2 bar / 75.4 psi (depending on pump-head)
Motor type DC motor
Power consumption 150 W
Power supply 115/230VAC; 50/60Hz
Protection rating IP 30
Depth / Width / Height 220 x 155 x 260 mm (8 2/3" x 6 1/10" x 10??") (without pump-head)
Weight 6.4 kg (14 lb) (without pump-head)
Accessories - foot switch
Special characteristics The rotation direction of Ismatec gear pumps is not reversible



MCP-Z Standard齿轮泵
- dispensing and delivery pump
- 20 interchangeable pump-heads
- RS232 and analog interface
BVP-Z
1 – 7020 ml/min

Powerful delivery pump with digital potentiometer for speed setting.

BVP-Z
BVP-Z drive
Operating panel
Operating panel BVP-Z drive

Order No.
(for drive only)
ISM 446



Interchangeable pump-heads
Gear pump-heads

Flow rates 1 – 7020 ml/min (depending on mounted pump-head)
Motor speed 60 – 6000 rpm, adjustable in 0.1% steps
Speed setting 3-digit potentiometer
Speed control Closed loop control for pressure independent speed
Analog input Speed control (0–5 or 0–10V / 0-20 or 4–20mA)
Analog output Speed monitoring (0–10VDC or 0–12 kHz)
Digital input (TTL level) Start/Stop
Differential pressure max. 5.2 bar / 75.4 psi (depending on pump-head)
Motor type DC motor
Power consumption 150 W
Power supply 115/230VAC; 50/60Hz
Protection rating IP 30
Depth / Width / Height 220 x 155 x 260 mm (8 2/3" x 6 1/10" x 10??") (without pump-head)
Weight 5.7 kg (13 lb) (without pump-head)
Accessories foot switch
Special characteristics The rotation direction of Ismatec gear pumps is not reversible


BVP-Z齿轮泵
- variable speed delivery pump
- 20 interchangeable pump-heads
- analog interface
Reglo-Z Digital Dispensing Pump
1 – 3200 ml/min

Compact, pulsefree dispensing pump. Flow rate and dispensing volume can be calibrated.

Pulsefree Dispensing Pump with Excellent Repeatability !
Repetitive error (rel.)
<
<
0.5%
0.2%
0.1%
at
at
at
5 ml
20 ml
100 ml


REGLO-Z Digital
REGLO-Z Digital pump
Operating panel
REGLO-Z Digital Display

Order No.
(for drive only)
ISM 901




Interchangeable pump-heads
Gear pump-heads

Flow rates 0.85 – 3200 ml/min (depending on mounted pump-head)
Operating panel - 6-button membrane key-pad
- LED display
Operating modes

- pumping by drive speed (rpm)
pumping by flow rate (ml/min)
dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
dispensing by volume within a pre-set time
interval dispensing by volume with a pause
- interval dispensing by time with a pause
setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
- back-steps for drip-free dispensing

reversible rotation direction (only for Cavity Style pumpheads)

Calibrating functions - for flow rate (ml/min)
- for dispensing volume (ml)
Motor speed 50 – 5000 rpm
Speed setting digital speed setting (resolution 1 rpm)
Speed control closed loop control for pressure independent speed
RS232 interfaces - RS232 "in"    - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
Analog output Speed monitoring (0–12 kHz)
Digital input (TTL level) Run/Stop, autostart
Differential pressure max. 5.2 bar / 75.4 psi (depending on pump-head)
Motor type DC motor
Power consumption 140 W
Power supply 100 – 230 VAC / 50 – 60 Hz
Protection rating IP 30
Depth / Width / Height 178 x 100 x 135 mm (7" x 3.9" x 5.3 ") (without pump-head)
Weight 1.7 kg (3.7 lb) (without pump-head)
Accessories Driver for "LabView" software (free download)
Foot switch


REGLO-Z Digital齿轮泵
- dispensing and delivery pump
- 15 interchangeable pump-heads
- RS232 interface
Reglo-ZS Digital
1 – 3200 ml/min

Compact, pulsefree dispensing pump. Flow rate and dispensing volume can be calibrated. Same pump as REGLO-Z Digitalbut control unit and drive separated.


Pulsefree Dispensing Pump with Excellent Repeatability !
Repetitive error (rel.)
<
<
0.5%
0.2%
0.1%
at
at
at
5 ml
20 ml
100 ml


REGLO-ZS Digital
Drive and pump-head are
separated from the control unit
by a 2 m long cable
Operating panel
REGLO-Z Digital Display

Order No.
(for drive only)
ISM 1143




Interchangeable pump-heads
Gear pump-heads

Flow rates 0.85 – 3200 ml/min (depending on mounted pump-head)
Operating panel - 6-button membrane key-pad
- LED display
Operating modes

- pumping by drive speed (rpm)
pumping by flow rate (ml/min)
dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
dispensing by volume within a pre-set time
interval dispensing by volume with a pause
- interval dispensing by time with a pause
setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
- back-steps for drip-free dispensing

reversible rotation direction (only for Cavity Style pumpheads)

Calibrating functions - for flow rate (ml/min)
- for dispensing volume (ml)
Motor speed 50 – 5000 rpm
Speed setting digital speed setting (resolution 1 rpm)
Speed control closed loop control for pressure independent speed
RS232 interfaces - RS232 "in"    - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
Analog output Speed monitoring (0–12 kHz)
Digital input (TTL level) Run/Stop, autostart
Differential pressure max. 5.2 bar / 75.4 psi (depending on pump-head)
Motor type DC motor
Power consumption 140 W
Power supply 100 – 230 VAC / 50 – 60 Hz
Protection rating IP 30
Depth / Width / Height 178 x 100 x 135 mm (7"x 3.9"x 5.3") = control unit
175 x 65 x 80 mm (6.9"x2.6"x3.2") = pump drive
Weight 1.2 kg (2.6 lb) = control unit
0.7 kg (1.5 lb) = pump drive
Accessories - foot switch


REGLO-ZS Digital齿轮泵
- dispensing and delivery pump
- 15 interchangeable pump-heads
- RS232 interface
Reglo-Z
1 – 3290 ml/min

Compact delivery pump with digital potentiometer for speed setting.

REGLO-Z Series
Reglo-Z drive
Operating panel
Operating panel Reglo-Z

Order No.
for this drive
ISM 895



Interchangeable pump-heads
Gear pump-heads

Flow rates 1 – 3290 ml/min (depending on mounted pump-head)
Motor speed 50  5000 rpm, adjustable in 1% steps
Speed setting 2-digit potentiometer
Speed control Closed loop control for pressure independent speed
Analog input Speed control (05 or 010V / 020 or 420mA)
Analog output Speed monitoring (010 kHz)
Digital input (TTL level) Start/Stop
Differential pressure max. 5.2 bar / 75.4 psi (depending on pump-head)
Motor type DC motor
Power consumption 50 W
Power supply 115/230VAC; 50/60Hz
Protection rating IP 30
Depth / Width / Height 178 x 100 x 143 mm (7" x 3.9 " x 5.6 ")
Weight 2.2 kg (4.6 lb)
Accessories foot switch
Special characteristics The rotation direction of Ismatec gear pumps is not reversible



REGLO-Z齿轮泵
- variable speed delivery pump
- 15 interchangeable pump-heads
- analog interface
Reglo-ZS
1 – 3290 ml/min

Same pump as REGLO-Z but control unit and drive separated.


REGLO-ZS
Reglo-ZS
Drive and pump-head are
separated from the control unit
by a 2 m long cable
Operating panel
Operating panel Reglo-ZS


Order No.
for drive and control unit
ISM 896


> Operating Manual (PDF)
Interchangeable pump-heads
Gear pump-heads

Link to
Cavity style pumpheads
Suction Shoe style pumpheads

Flow rates 1 – 3290 ml/min (depending on mounted pump-head)
Motor speed 50  5000 rpm, adjustable in 1% steps
Speed setting 2-digit potentiometer
Speed control Closed loop control for pressure independent speed
Analog input Speed control (05 or 010V / 020 or 420mA)
Analog output Speed monitoring (010 kHz)
Digital input (TTL level) Start/Stop
Differential pressure max. 5.2 bar / 75.4 psi (depending on mounted pump-head)
Motor type DC motor
Power consumption 50 W
Power supply 115/230VAC; 50/60Hz
Protection rating IP 30
Depth / Width / Height 178 x 100 x 143 mm (7" x 3.9 " x 5.6") = control unit
175 x 65 x 80 mm (6.9" x 2.6" x 3.2") = pump drive
Weight 1.7 kg (3.7 lb) = control unit
0.7 kg (1.5 lb) = pump drive
Accessories foot switch
Special characteristics The rotation direction of Ismatec gear pumps is not reversible

REGLO-ZS齿轮泵
- variable speed delivery pump
- 15 interchangeable pump-heads
- analog interface



3、ISMATEC柱塞泵

适用于腐蚀性介质和非常精度分配的里想泵系统
(CERAMIC中的活塞头和气缸套可提供泵头!)

①通过驱动速度(rpm)进行泵送
②通过流量(ml/min)进行泵送
③可调冲程体积
④按体积(ml)进行
⑤分配-按时间分配(0.1s直至999小时)
⑥在预设时间内按体积分配
⑦间隔分配体积与暂停
⑧间隔分配与暂停时间由
⑨设定的数量分配循环
⑩暂停时间设定(从0.1秒到999hrs)
?活塞行程回步骤wu滴漏分配
?可逆旋转方向

ISMATEC Rotary Piston Pumps


MCP-CPF Process; RH-type pump-head

MCP-CPF Process; Q-type pump-head
0.025 – 2300 ml/min
Process suitable and programmable piston pump. IP65-rated "washdown" pump with stainless steel housing.

Powerful dispensing pump can be calibrated. The pump contains memory enough to store 4 sets of operating parameters.




MCP-CPF Process

- dispensing and delivery pump
- dust-tight and waterproof
- speed range 10.0 .. 1800 rpm
- available with RH and Q-type
..
pump-heads
- RS232 and analog interface

MCP-CPF Process

MCP-CPF Process
with QP Q2 pump-head

PUMP ANIMATION
> Operating Manual (PDF)
Operating panel
Ordering Information
Drive ISM 919

For pump-heads
see table below.
Interchangeable pumpheads
Choose your piston pump-head ...

Pump-
heads

Volume/rev.

Flow rates
RH 00
RH 0
RH 1
2.5  25 ??l
 50 ??l
10  100 ??l
0.025 to 45 ml/min
0.050 to 90 ml/min
0.1 to 180 ml/min
QP Q0
QP Q1
QP Q2
QP Q3
3.2  80 ??l
12.8  320 ??l
28.8  720 ??l
51.2  1280 ??l
0.04 to 144 ml/min
0.13 to 576 ml/min
0.29 to 1300 ml/min
0.51 to 2300 ml/min


Flow rates 0.025 - 2300 ml/min (depending on the piston pump-head)
Operating panel - 7-button membrane key-pad
- LED display
Memory 4 sets of operating parameters can be stored
Programming
(similar to PLC)
4 individual command sequences programmed in a PC can be stored in the pump. The user can run the programs using the pump as a stand-alone unit.
Operating modes

- pumping by drive speed (rpm)
pumping by flow rate (ml/min)
- adjustable stroke volume
dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
dispensing by volume within a pre-set time
interval dispensing by volume with a pause
- interval dispensing by time with a pause
setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
- piston stroke back-steps for drip-free dispensing

reversible rotation direction

Calibrating functions - for flow rate (ml/min)
- for dispensing volume (ml)
Drive speed 10.0  1800.0 rpm
Speed setting digital speed setting, (resolution 0.1 rpm)
Speed control closed loop control for pressure independent speed
RS232 interfaces - RS232 "in"   - for operation controlling via PC
- RS232 "out" - for cascading up to 8 pumps
Analog input Speed control (05 or 010V / 020 or 420mA)
Analog output Speed monitoring (010VDC or 07.2 kHz)
Digital input (TTL level) Start/Stop, rotation direction, autostart, 2 universal inputs
Digital output (PWM) 2 universal outputs
Differential pressure 6.9 bar (100 psi) (depending on pump-head)
Motor type DC motor
Power consumption 100 W
Power supply 100 – 230 VAC / 50 – 60 Hz
Protection rating IP 65
Depth / Width / Height 220 x 155 x 260 mm (8 2/3" x 6 1/10" x 10 ??") (without pump-head)
Weight 6.9 kg (16 lb) (without pump-head)
Accessories Progedit software (free download)
Driver for "LabView" software (free download)

Foot switch



Reglo-CPF
0.1 – 180 ml/min
Compact dispensing pump.
Microprocessor controlled drive with calibration functions.
REGLO-CPF Digital
dispensing and delivery pump
- RS232 interface
- speed output

- adjustable volume per revolution


REGLO-CPF Digital
Reglo-CPF with RH00 pump-head
REGLO-CPF Digital
with
RH00 pump-head
> Operating Manual (PDF)
Operating panel
Operating panel Reglo-CPF
Ordering Information
Drive ISM 321

Interchangeable pump-heads
Choose your pump-head from the table below...
Pumpheads Volume/ Rev. Flow rates
RH00 2.5  25 ?l 0.1 to 45 ml/min
RH0  50 ?l 0.2 to 90 ml/min
RH1 10  100 ?l 0.4 to 180 ml/min
PUMP ANIMATION


Drive specifications

Flow rates 0.1 - 180 ml/min (depending on the pump-head)
Operating panel - 6-button membrane key-pad
- LED display
Operating modes

- pumping by drive speed (rpm)
pumping by flow rate (ml/min)
- adjustable stroke volume
dispensing by volume (ml)
- dispensing by time (0.1s up to 999hrs)
dispensing by volume within a pre-set time
interval dispensing by volume with a pause
- interval dispensing by time with a pause
setting the number of dispensing cycles
- pause time setting (from 0.1s up to 999hrs)
- piston stroke back-steps for drip-free dispensing

reversible rotation direction

Calibrating function - for flow rate (ml/min)
- for dispensing volume (ml)
Flow rate setting digital flow rate setting, in ??l and ml
Speed range 40 – 1800 rpm
Speed control closed loop control for pressure independent speed
RS232 interfaces RS232 "in"    - for operation controlling via PC
RS232 "out"  - for cascading up to 8 pumps
Digital input (TTL level) Run/Stop, autostart
Analog output Speed monitoring (09 kHz)
Differential pressure max. 6.9 bar
Motor type DC motor
Power consumption 140 W
Power supply 100 – 230 VAC / 50 – 60 Hz
Protection rating IP 30
Depth / Width / Height 250 x 100 x 135 mm
(9 4/5" x 4" x 5 3/10")
Weight 2.1 kg (5 lb)
Accessories foot switch

REGLO-CPF Analog
0.045 – 180 ml/min

Compact delivery pump.
Same pump as REGLO-CPF Digital, but without dispensing functions.
Variable speed drive with speed setting in steps of 1%.



REGLO-CPF Analog
- variable speed delivery pump
- analog interface
- speed output
- adjustable volum




REGLO-CPF Analog
REGLO-CPF Analog
REGLO-CPF Analog
with
RH0 pump-head
> Operating Manual (PDF)
Operating panel
Display REGLO-CPF Analog
Ordering Information
Drive ISM 1014

Interchangeable pump-heads
Choose your pump-head
from the table below ...
Pump-heads Volume/ Rev. Flow rate
RH00 2.5  25 ??l 0.045 to 45 ml/min
RH0  50 ??l 0.09 to 90 ml/min
RH1 10  100 ??l 0.18 to 180 ml/min
PUMP ANIMATION

Drive specifications

Flow rates 0.045 - 180 ml/min (depending on the pump-head)
Operating panel - 2-digit speed selector
- switch for rotation direction
- mains power switch
Speed setting 2-digit speed selector
Speed range 18 – 1800 rpm
Speed control closed loop control for pressure independent speed
Analog intput Speed control (0–5V, 0–10V, 0–20mA, 4–20mA
Analog output Speed monitoring (09 kHz)
Digital input (TTL level) Start/Stop, rotation direction
Differential pressure max. 6.9 bar (100 psi)
Motor type DC motor
Power consumption 50 W
Power supply 115/230VAC; 50/60Hz
Protection rating IP 30
Depth / Width / Height 250 x 100 x 135 mm
(9 4/5" x 4" x 5 3/10")
Weight 2.5 kg (5.5 lb)
Accessories foot switch
