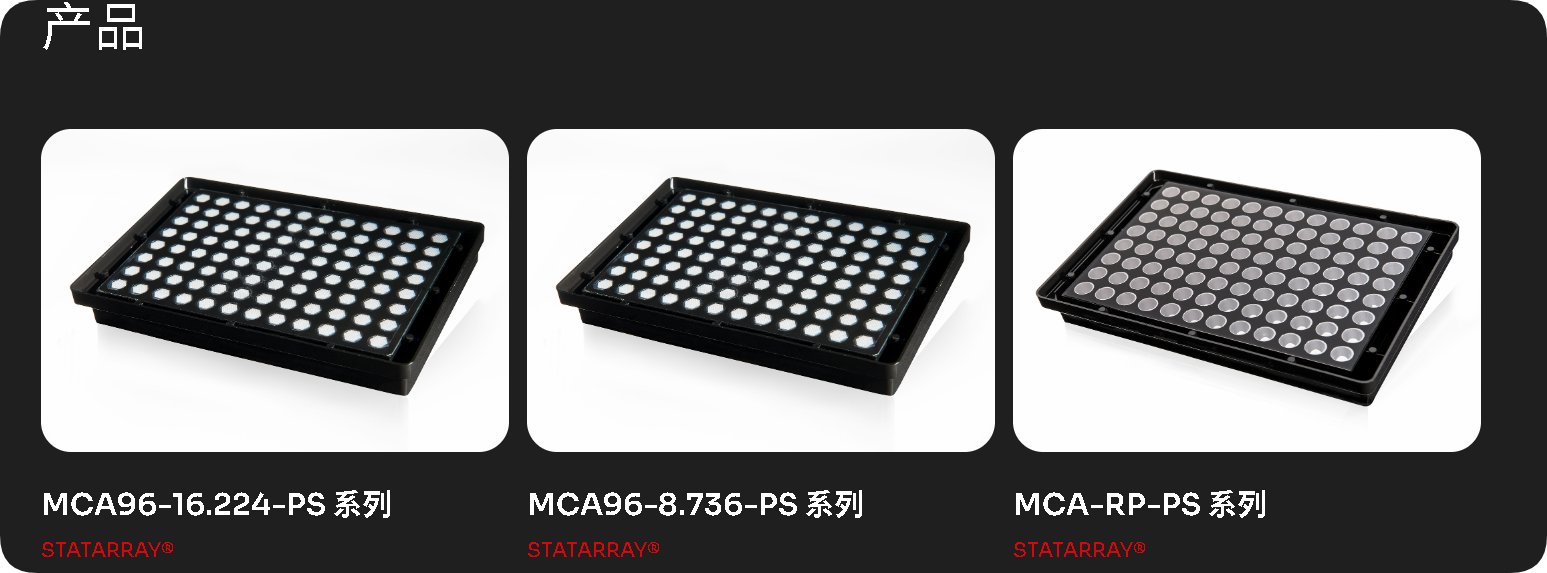

MCA96-16.224-PS;96 孔微板;高度透明的聚合物薄膜底部，每个（宏观）孔有 169 个六边形排列的 U 形/圆底微腔/孔;~300 μm 内微孔直径;< 25 μm 底厚;聚苯乙烯 （PS）;黑色上体/部件/结构，占地面积符合 ANSI/SLAS 标准;包括盖子;立包装
MCA96-8.736-PS;96 孔微板;高度透明的聚合物薄膜底部，每个（宏观）孔有 91 个六边形排列的 U 形/圆底微腔/孔;~450 μm 内微孔直径;< 25 μm 底厚;聚苯乙烯 （PS）;黑色上体/部件/结构，占地面积符合 ANSI/SLAS 标准;包括盖子;立包装
MCA-RP-PS;96 孔微板;高透明度的扁平聚合物薄膜底部，由与 MCA96-16.224-PS 和 MCA96-8.376-PS 相同的材料制成;~50 μm 底部厚度;聚苯乙烯 （PS）;上体/部件/结构黑色，占地面积符合 ANSI/SLAS 标准;包括盖子;立包装

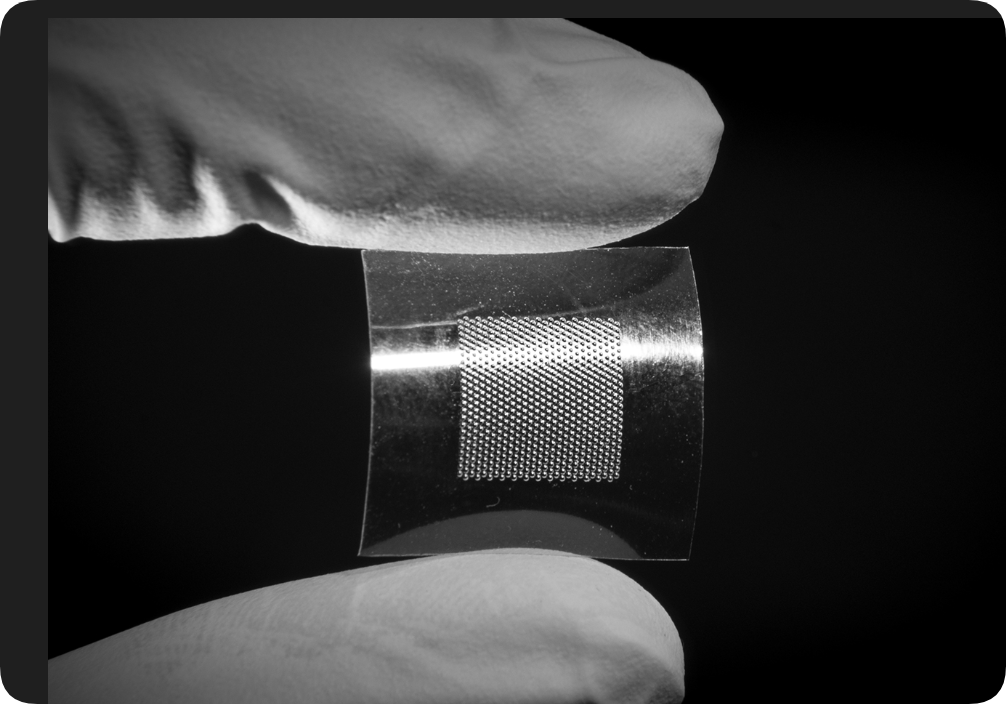

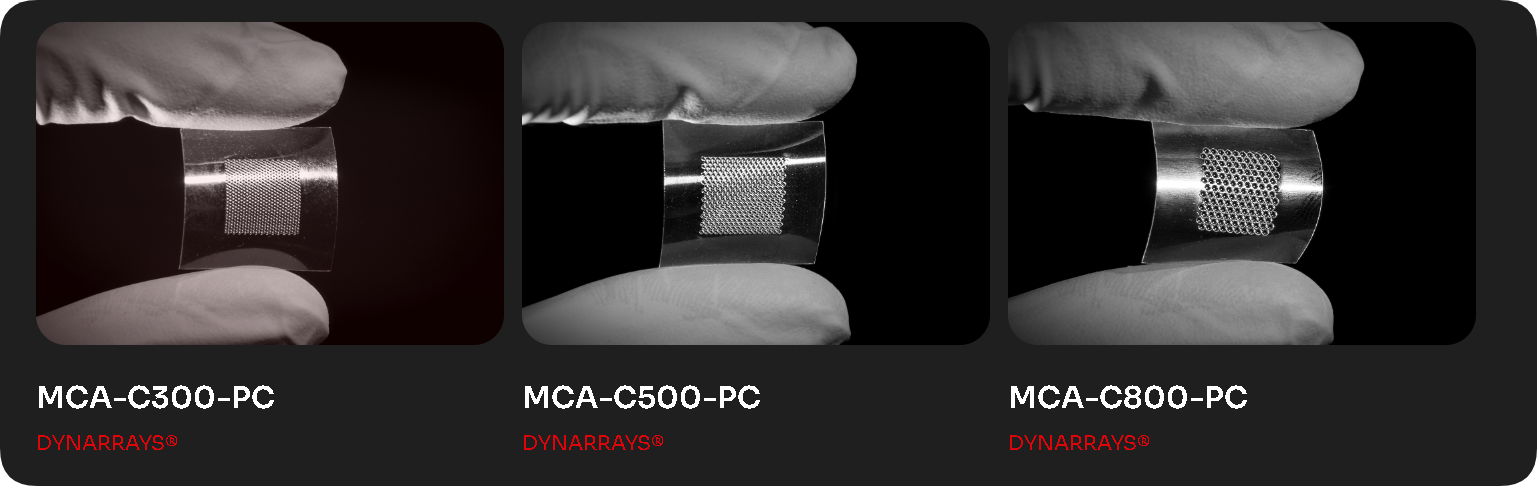

MCA-C300-PC; 20 mm x 20 mm microporous film chip with hexagonally arranged U /round-bottom microwells/ cavities arranged in a 10 mm x 10 mm array; based on proprietary 3D ion track etching technology; ~300 μm inner microwell diameter; < 25 μm bottom thickness; ~1–3 μm average pore diameter; polycarbonate (PC)
MCA-C500-PC; 20 mm x 20 mm microporous film chip with hexagonally arranged U /round-bottom microcavities/ wells arranged in a 10 mm x 10 mm array; based on proprietary 3D ion track etching technology; ~450 μm inner microwell diameter; < 25 μm bottom thickness; ~1–3 μm average pore diameter; polycarbonate (PC)
MCA-C800-PC
MCA-C800-PC; 20 mm x 20 mm microporous film chip with hexagonally arranged U /round-bottom microcavities/ wells arranged in a 10 mm x 10 mm array; based on proprietary 3D ion track etching technology; ~750 μm inner microwell diameter; < 25 μm bottom thickness; ~1–3 μm average pore diameter; polycarbonate (PC)

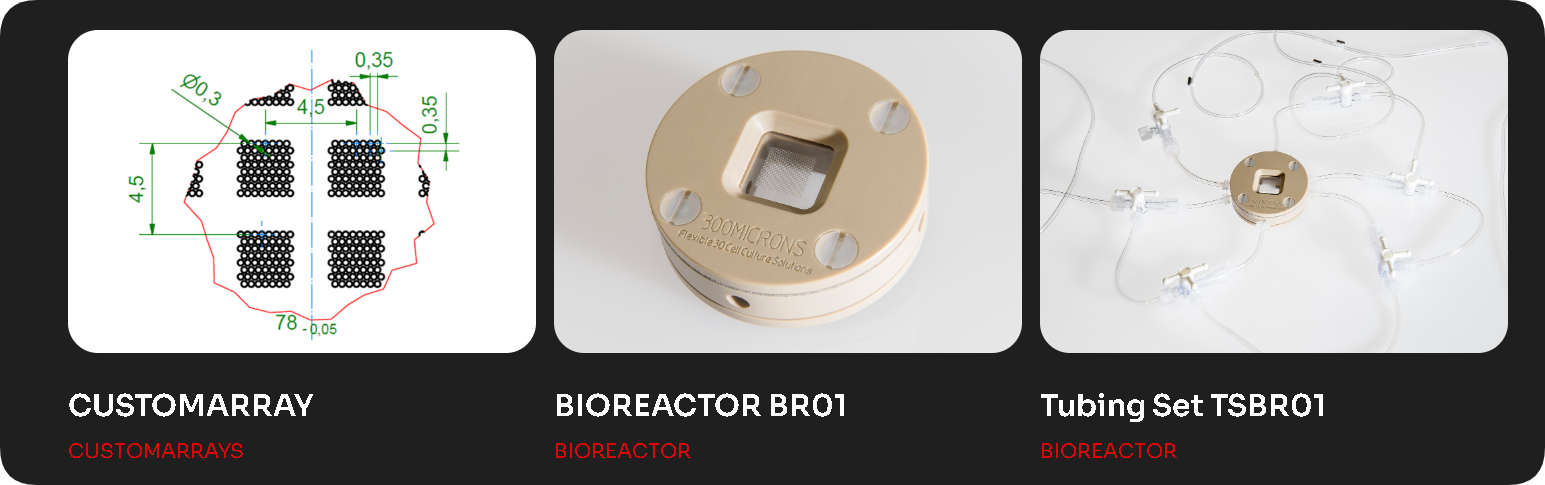

CUSTOMARRAY

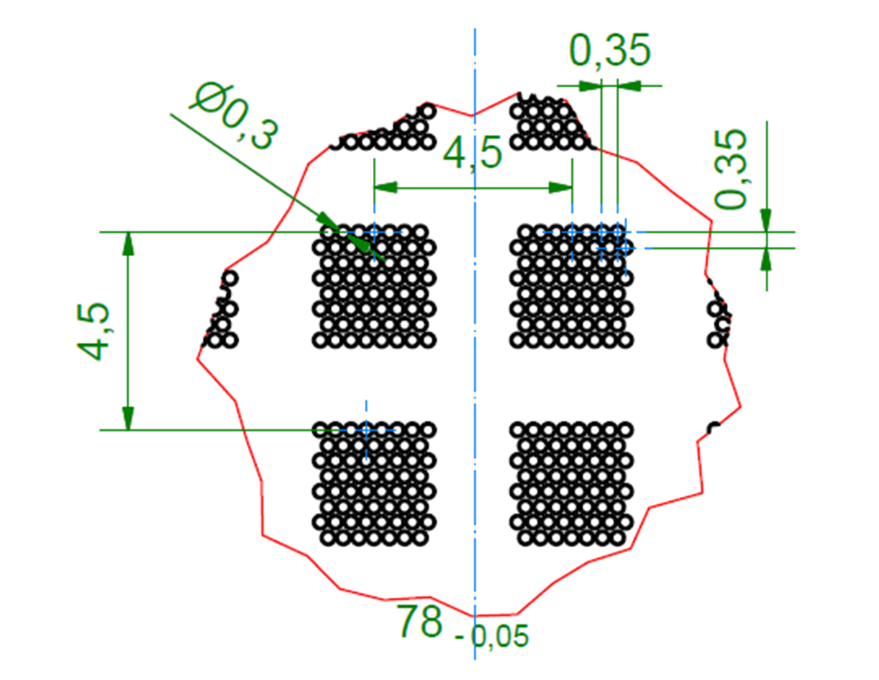

Microwell arrays based on the design concerning
- microwell shapes, sizes and arrangements/positions
- outer dimensions of the film chip
and the film thickness and material regarding
- pore size and density for polycarbonate (PC) – which can be adjusted largely independently
- type of the polymer for a dense/non-porous film – for example, cyclic olefin polymer (COP) or copolymer (COC)
defined together and agreed on with our customers.
生物反应器 BR01
BR01;容纳并同时作两台 DYNARRAY MCA-C300-PC、MCA-C500-PC 或 MCA-C800-PC;用于纯灌注（流通）、纯“超级熔流”（溢流）或混合模式作;来自聚醚醚酮（PEEK;外壳部件;可高压灭菌）、聚二甲基硅氧烷（PDMS;密封）、玻璃（盖玻片、窗户）和聚酰胺（PA;螺钉）
管路套件 TSBR01
TSBR01;用于 1 个 BIOREACTOR BR01 的管路套件;与生物反应器连接 - 包括两止管、鲁尔（锁）连接器和三通阀 - 并与蠕动泵/滚轮泵一起作
