MicroSquisher多种微力测试分析系统,生物材料压缩拉伸弯曲压痕和剪切测试仪系统

型号:MicroSquisher
价格:请致电:010-67529703
品牌:cellscale

MicroSquisher多种微力测试分析系统

应用样品包括:

小组织样品,水凝胶微球,细胞球体和工程化组织生长基质等。

MicroSquisher是一个微型机械测试系统,可以做别人所不能做之事。更小的标本,更好的解像力,更容易的测试设置和ji佳的视觉效果。应用包括小组织样品,水凝胶微球,细胞球体和工程化组织生长基质。

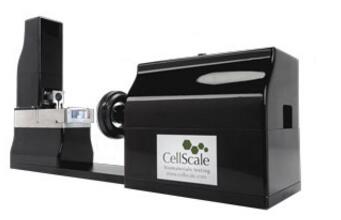

MicroSquisher – Micro Scale Mechanical Tester

Micro Scale mechanical testing you can see AND believe

The MicroSquisher is a micro-scale mechanical test system that does what others can’t. Smaller specimens, better force resolution, easier test setups, and great visuals. Applications include small tissue samples, hydrogel microspheres, cell spheroids, and engineered matrix.

Key Features

  • Compression, tension, bending, indentation, and shear testing test modes
  • High precision Piezo-electric actuators with 0.1?m resolution
  • Force resolution down to 10nN
  • High resolution CCD imaging
  • Integrated temperature-controlled media bath
  • Fully featured user interface software for simple, cyclic, relaxation, and multi-modal testing with real-time feedback

Specimens & Mounting

Parallel Plate Compression
Specimen: 300?m hydrogel microsphere (30KPa)
Peak Force: 20mN

Cantilever Bend
Specimen: 20?m thick by 4mm wide foil strip (70MPa)
Peak Force: 3mN

Parallel Plate Compression
Specimen: 2mm diameter hydrogel cylinder (12KPa)
Peak Force: 20mN

Spherical Indentation
Specimen: 1.5mm diameter indenter into hydrogel (2KPa)
Peak Force: 12mN

Bend-Induced Tension
Specimen: spider silk
Peak Force: 2mN

Puncture-Attached Tension
Specimen: 3.5mm wide by 1.5mm thick hydrogel (0.5KPa)
Peak Force: 1.4mN

TECHNICAL INFO

Dimensions 56X 14 X 24cm
Weight 9kg
Force Capacity 500mN
Available Force Transducers
0.005, 0.02, 0.08, 0.2, 1, 5, 25, 100, 500mN
Force Accuracy Approx. 0.2% of transducer capacity
Maximum grip separation Approx. 10mm
Maximum Velocity 0.5mm/s
Maximum Cycle Frequency 0.1Hz
Maximum Data Rate 5Hz



主要you势

·         压缩、拉伸、弯曲、压痕和剪切测试的测试模式

·         0.1μm分辨率的高精度压电执行器

·         解像力降至10nN

·         高分辨率的CCD成像

·         集成温控介质浴

·         功能齐quan的用户界面软件,可进行实时反馈的简单、循环、松弛和多模式测试



技术规格参数:

外形尺寸:56X 14 X 24cm

重量:9kg

力的大小:500mN

可用的力传感器:0.005, 0.02, 0.08, 0.2, 1, 5, 25, 100, 500mN

力的准确性:约换能器容量的0.2

zui大夹点分离:10mm

zui大速度:0.5mm/s

zui大循环频率:0.1Hz

zui大数据频率:5Hz


应用文献:
