BMM 多功能微观生物力学系统之材料组织微力剪切力、摩擦磨损测试分析

型号:MachOne
联系人:李先生
联系电话:18618101725
品牌:加拿大BMM


多功能组织材料生物力学特性、电位分布测试分析表征系统
-多载荷多物理场耦合微观力学性能原位测试系统

- 材料组织微力剪切、摩擦磨损测试分析

剪切shear

剪切试验可用于评估平面剪切或扭转中的材料的剪切模量g。 当在平行于其运动的方向上施加力时,剪切模量表示材料的刚度。 平衡剪切模量G被描述为剪切应变上的剪切应力。 两种配置通常用于确定剪切模量:平面剪切,其遵循横轴(x或y轴)和扭转剪切,其遵循旋转轴。 在平面剪切的构造下,假设样品是一个完美的矩形棱镜,其在应力下具有一个表面,其相对的表面受约束。 在扭转剪切的构造下,假设样品是一个完美的圆柱(惯性矫正力矩可以施加用于其他形状),其顶部和底表面完Quan连接到两个压板(非滑动边界条件)。

摩擦

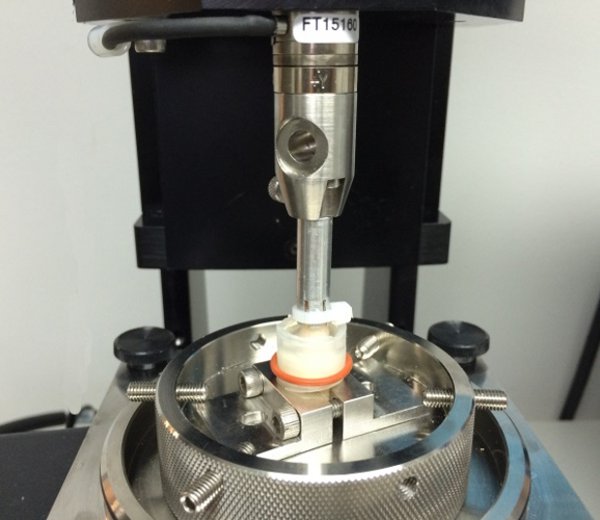

摩擦测试确定两个表面在接触力作用下相互滑动的难易程度。在这些试验中通常观察到两种主要现象:静摩擦和动摩擦。静摩擦力是阻止物体从静止状态移动的力,而动摩擦力是当两个表面已经在运动时作用在它们之间的力。使用垂直平台施加法向力,其他平台施加旋转或平移运动,由BMM 开发的软件允许您轻松确定摩擦系数和测试中涉及的力。摩擦测试的目的涵盖了一个很大的兴趣领域。例如,测试一种新型润滑剂的有效性或比较两个样品的表面性质。

压痕亮点特点

1、力范围跨度大:uN到250N

2、可以测试软骨和隐形眼睛摩擦力

3、产品成熟,文献量大(数百篇)

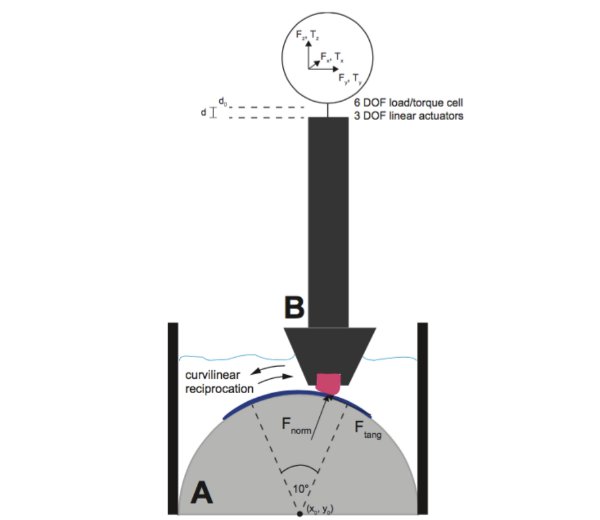

4、多力偶联测试,如测量旋转中两个软骨表面之间的摩擦系数

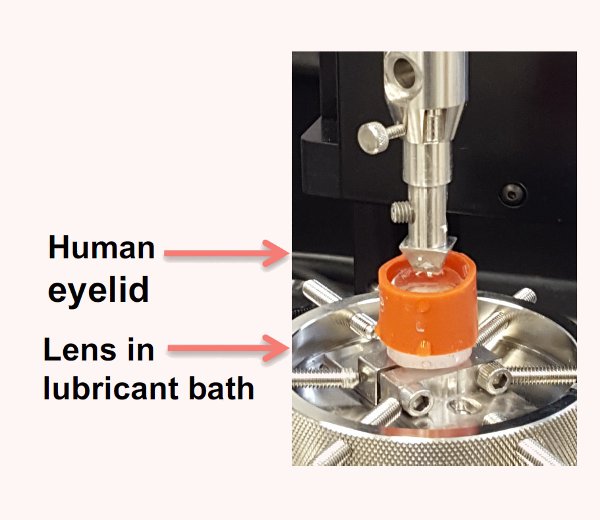

5、微力测试隐形眼睛摩擦测试

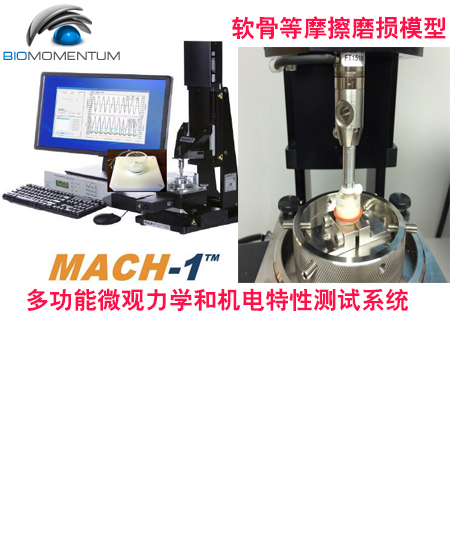

该系统是能集成压缩、张力、剪切、摩擦、扭转和2D/3D压痕、3D轮廓及多力混合耦连测试的一体化微观力学测试装置。能对生物组织、聚合物、凝胶、生物材料、胶囊、粘合剂和食品进行精密可靠的机械刺激和表征。允许表征的机械性能包括刚度、强度、模量、粘弹性、塑性、硬度、附着力、肿胀和松弛位移控制运动。

特点

1、适用样品范围广:

1.1、从骨等硬组织材料到脑组织、眼角膜等软组织材料

1.2、从粗椎间盘的样品到j细纤维丝

2、通高量压痕测试分析

2.1、三维法向压痕映射非平面样品整个表面的力学特性

2.2、48孔板中压痕测试分析

3、力学类型测试分析功能齐

模块化集成压缩、张力、剪切、摩擦、扭转、穿刺、摩擦和2D/3D压痕、3D表面轮廓、3D厚度、粘合、塔接结合力等各种力学类型支持,微观结构表征及动态力学分析研究

4、高分辨率:

4.1、位移分辨率达0.1um

4.2、力分辨率 达0.025mN

5、 行程范围广:50-250mm

6、体积小巧、可放入培养箱内

7 、高变分辨率成像跟踪分析

8、多轴向、多力偶联刺激

9、活性组织电位分布测试分析

10、产品成熟,文献量达 上千篇







该微观力学测试分析与培养系统初该系统为软骨力学性能检测所研发,此后集成了多种配置以满足更多生物组织和软质材料力学性能的测量和评估。该仪器卓越性能特点--模块化设计,简易操作平台,面向用户设计,广泛应用于生物材料检测,高分子材料检测以及数字教学等领域,产品得到了业界广泛的认可和推广。该系统

相比于传统的大型力学测试系统,该微观力学测试系统总体较小,可以实现桌面化的操作流程,操作过程简便。该系统测试方法面,是多样化的材料力学表征工具,是科学家、工程师和其他各领域用户的佳选择。在动态力学分析、薄膜、复合物、聚合物、生物产品、医学鉴定和水凝胶等领域都有广泛应用。








Effect of synovial fluid on boundary lubrication of articular cartilageSchmidt TA and Sah RLOsteoarthritis Cartilage. 2007 Jan;15(1):35-47. Epub 2006 Jul 21
OBJECTIVES: The lubrication of articulating cartilage surfaces in joints occurs through several distinct modes. In the boundary mode of lubrication, load is supported by surface-to-surface contact, a feature that makes this mode particularly important for maintenance of the normally pristine articular surface. A boundary mode of lubrication is indicated by a kinetic friction coefficient being...


Articulation-Induced Responses of Superficial Zone Chondrocytes in Human Knee Articular Cartilage - Effects of Shear and SlidingHsu FH, Hui AY, Chen AC, Lotz MK and Sah ROrthopeadic Research Society Annual Meeting in Las Vegas, Abstract 0256
Introduction: During daily physical activities, joint articulation results in 3-10% compression in its overall thickness. There is also consensus that articulation is a combined process of shearing and sliding, with relative rotational and translational motions between femoral condyle and tibia cartilage at least at the millimeter scale 2,3. The macroscale motions in the joint which translates...Read More
Development of a Sequence of Mechanical Tests for Articular Cartilage at a Single LocationSim S, Chartrand A, Lavallee AP, Tessier J, Garon M, Quenneville E and Buschmann MDOrthopeadic Research Society Annual Meeting in Orlando, 2016
In a recent study, our group has highlighted the importance of considering the natural topographic variability of the mechanical properties over the articular surface, particularly in the context of cartilage repair, where it can screen the effect of a treatment [1]. Moreover, the availability of test sample is limited in those repair studies since the regions of interest are often limited in size....Read More
ASTM D1894 - Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and SheetingASTM International, West Conshohocken, PA, 2014, www.astm.org
Significance and Use

4.1 Measurements of frictional properties may be made on a film or sheeting specimen when sliding over itself or over another substance. The coefficients of friction are related to the slip properties of plastic films that are of wide interest in packaging applications. These methods yield empirical data for control purposes in film production. Correlation...Read More
ASTM F1538 - Standard Specification for Glass and Glass Ceramic Biomaterials for ImplantationASTM International, West Conshohocken, PA, 2009, www.astm.org
Abstract

This specification covers the material requirements and characterization techniques for glass and glass-ceramic biomaterials intended for use as bulk porous or powdered surgical implants, or as coatings on surgical devices, but not including drug delivery systems. Glass and glass-ceramic biomaterials should be evaluated thoroughly for biocompatibility before human use....Read More
ASTM F2451-05 - Standard Guide for in vivo Assessment of Implantable Devices Intended to Repair or Regenerate Articular CartilageASTM International, West Conshohocken, PA, 2010, www.astm.org
Significance and Use

This guide is aimed at providing a range of in vivo models to aid in preclinical research and development of tissue engineered medical products intended for the clinical repair or regeneration of articular cartilage.
This guide includes a description of the animal models, surgical considerations, and tissue processing as well as the qualitative and quantitative...Read More
MachOne - Friction Testing on a Cartilage Disk or an Osteochondral (MA056-SOP08-D v2)Chartrand A and Quenneville EBMM Inc. Laval (QC), Canada, Effective Date: August 24th, 2015
Purpose
This procedure describes a standard method to realize a friction test on a cartilage disk or an osteochondral using the MachOne TM mechanical tester.

Scope
This procedure can be used for the ex vivo  friction test using a planar sliding method on a cartilage disk or an osteochondral...Read More
MachOne Analysis - Extraction of Mechanical Parameters Following Friction Testing on a Cartilage Disk or an Osteochondral (SW186-SOP07-D v2)Chartrand A and Quenneville EBMM Inc. Laval (QC), Canada, Effective Date: August 24h, 2015
Purpose
This procedure describes a MatLab-based method to extract mechanical parameters from the MachOne result files generated following friction testing on a cartilage disk or an osteochondral as per MA056-SOP08-D.

Scope
This procedure based on a MatLab code can be applied using any MachOne result file obtained following a planar friction...Read More
Tailoring hydrogel surface properties to modulate cellular response to shear loadingMeinert C, Schrobback K, Levett PA, Lutton C, Sah R and Klein TJActa biomaterialia, October 2016. DOI: 10.1016/j.actbio.2016.10.011
Biological tissues at articulating surfaces, such as articular cartilage, typically have remarkable low-friction properties that limit tissue shear during movement. However, these frictional properties change with trauma, aging, and disease, resulting in an altered mechanical state within the tissues. Yet, it remains unclear how these surface changes affect the behaviour of embedded cells when the...Read More
Mechanical characterization of matrix-induced autologous chondrocyte implantation (MACI®) grafts in an equine model at 53 weeksGriffin DJ, Bonnevie ED, Lachowsky DJ, Hart JC, Sparks HD, Moran N and Bonassar LJJournal of biomechanics, 48(10), 1944-1949. (2015)
There has been much interest in using autologous chondrocytes in combination with scaffold materials to aid in cartilage repair. In the present study, a total of 27 animals were used to compare the performance of matrix-assisted chondrocyte implantation (MACIs) using a collagen sponge as a chondrocyte delivery vehicle, the sponge membrane alone, and empty controls. A total of three distinct types of...Read More
Effect of synovial fluid on boundary lubrication of articular cartilageSchmidt TA and Sah RLOsteoarthritis Cartilage. 2007 Jan;15(1):35-47. Epub 2006 Jul 21
OBJECTIVES: The lubrication of articulating cartilage surfaces in joints occurs through several distinct modes. In the boundary mode of lubrication, load is supported by surface-to-surface contact, a feature that makes this mode particularly important for maintenance of the normally pristine articular surface. A boundary mode of lubrication is indicated by a kinetic friction coefficient...Read More
Combined Mechanical Characterizations Increases Sensitivity in the Assessment of Human Cartilage DegenerationSim S, Hadjab I, Chevrolat L-A, Masse M, Tong AL, Lavigne P, Garon M, Quenneville E and Buschmann MDAccepted for a podium presentation at ORS 2017
Introduction: We published a recent study showing superior sensitivity of electromechanical and indentation (instantaneous response) assessments versus well-established techniques, including histological Mankin s, to characterize cartilage degeneration. This study aims to determine whether the combination of instantaneous, relaxation and equilibrium mechanical properties and friction...Read More
Evaluation of genipin for stabilization of decellularized porcine cartilageElder S, Pinheiro A, Young C, Smith P and Wright EJ Orthop Res. 2016 Nov 18. doi: 10.1002/jor.23483
Abstract
We speculate that an acellular osteochondral xenograft may be a good alternative to allografts for repair of focal articular cartilage lesions. In order to make a xenograft resistant to enzymatic degradation and to prevent a chronic immune response it may beneficial to stabilize it through crosslinking. The concept is analogous to treatment of porcine bioprosthetic heart...Read More
Biomechanics and MechanoBiology of Human Cartilage ArticulationHsu FH, Alonso E, Raleigh AR, Saleh AA, Masuda K, Lotz MK, Chen AC and Sah ROrthopeadic Research Society Annual Meeting, 2016, Orlando, USA, Poster abstract 1428
